ALCAD ERLEA PLUS H-FREE 7INCH.KIT
Complete 2-wire Video Door-Entry Solution – Code 9720165 / Model KVS-31221
Key Features
7-Inch Hands-Free Monitor: Includes a sleek, large indoor color display operating with a hands-free ("H-Free") communication interface.
2-Wire Non-Polarized System: Simplifies installation significantly by utilizing just a two-wire layout for power, video, and audio delivery.
Wide-Angle Surveillance: The outdoor entrance panel features a high-visibility camera with a 120º wide-view angle, giving full control over who is at the gate or door.
Proximity Key Reader: Built-in proximity reader allows quick, keyless entry for residents using localized key tags or cards.
Automatic Switch-On Function: Allows the homeowner to trigger the camera system and view live video feed for security surveillance without needing someone to press the doorbell first.
Robust Entrance Panel: Designed with a 1-button touch layout, integrated rain shield, and ambient lighting tailored for residential environments.
Overview

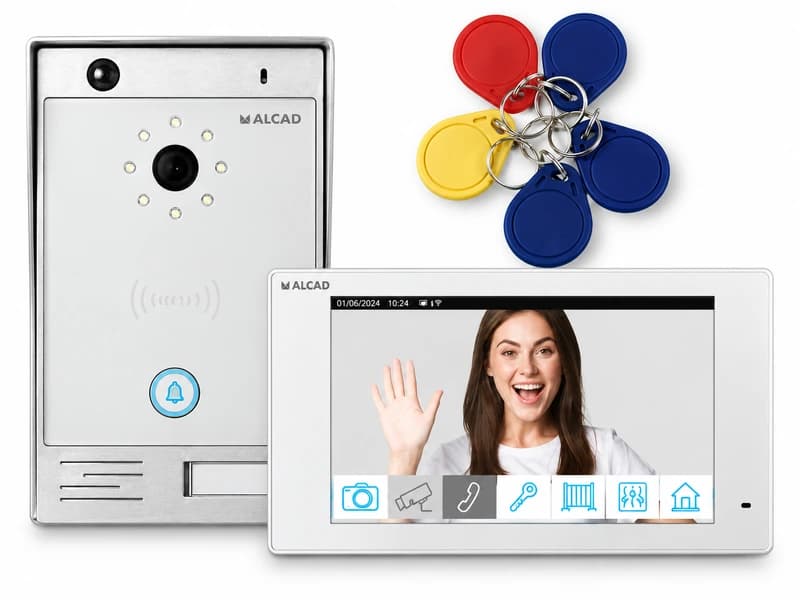

he ALCAD ERLEA PLUS Hands-Free 7" Kit, 1 Button – Code 9720165 / Model KVS-31221 is a complete 2-wire video door-entry solution for single-family villas and residences, combining a modern outdoor station with a large 7-inch hands-free touchscreen indoor monitor. The ERLEA PLUS entrance panel incorporates a 120° wide-angle camera, night vision, IP55-rated protection, protective rain hood, capacitive touch call button and integrated iACCESS RFID proximity reader. The monitor allows users to communicate hands-free, release the entrance and activate the outdoor camera without first receiving a call for convenient entrance monitoring. It also provides automatic image capture when a visitor call is unanswered and image/video recording functionality. The standard kit includes the ERLEA PLUS one-button entrance panel, 7" monitor, DIN-rail power supply and five RFID proximity keys—three for normal door opening and two for configuration.The ERLEA PLUS system can be expanded according to the property layout. ALCAD specifies support for up to two additional KMC-12800 hands-free 7" indoor monitors – Code 9630083, allowing multiple internal locations to answer the same entrance call. Relevant accessories include the ABR-015 simple 15 VDC electric lock – Code 9730062, ASC-051 timed door-opening relay – Code 9730057, ALM-040 25 VA 12 VAC/15 VDC auxiliary power supply – Code 9620011, LAC-020 set of five additional resident proximity keys – Code 9690018, and CAB-007 2 × 1 mm² recommended system cable – Code 9750005. For projects requiring a different indoor-monitor and outdoor-panel architecture, ALCAD’s current kit portfolio also includes the ENARA 4.3" ACTIVE VIEW USOA 1-button kit – Code 9720169 / Model KVS-55121, while the wider ALCAD 2-wire family provides 4.3" and 7" ENARA monitors, Wi-Fi monitor options, splitters, tap-offs and connection accessories for larger residential installations.As an organized ALCAD partner and system integrator across Dubai, VEGA Digital IT Solutions LLC can provide a complete ERLEA PLUS solution covering site survey, product selection, system design, 2-wire cabling, entrance-panel and rain-hood installation, 7" monitor mounting, DIN-rail power-supply installation, electric-lock connection, RFID credential programming and final system configuration. VEGA Digital can also install additional indoor monitors, configure auxiliary door-opening relays, integrate suitable electric locks and test camera viewing, audio communication, touch calling, RFID access and automatic visitor-image recording before commissioning. With its two-wire architecture, 7" touchscreen interface, 120° entrance camera and integrated RFID access, the ERLEA PLUS platform provides a practical combined video intercom and access-control solution for villas, townhouses, private residences, offices and other properties throughout Dubai and the UAE.
