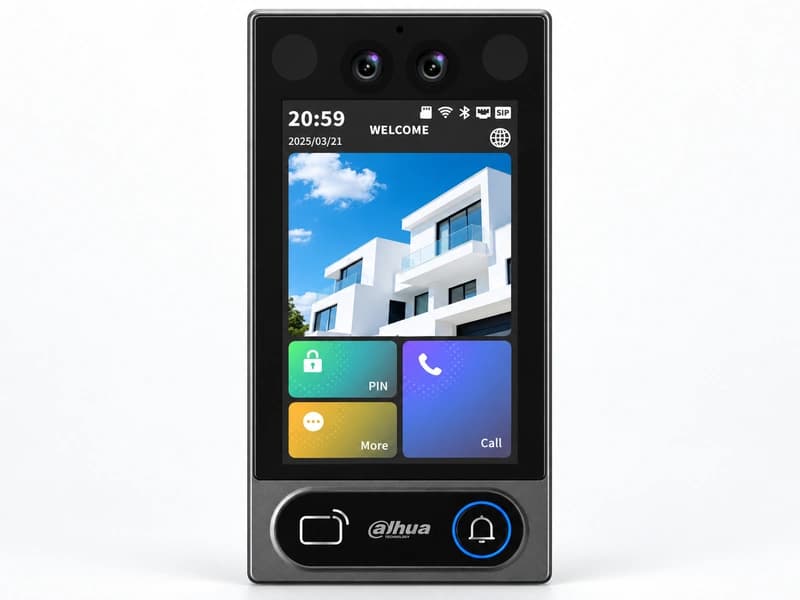

Dahua VTO6631QB-WP/VTO6631QS-WP

The Dahua VTO6631QB-WP / VTO6631QS-WP Ultra Series IP & Wi-Fi Villa Door Stations are advanced smart entrance terminals designed for villas, apartments, offices and modern residential developments. They feature a 5-inch IPS capacitive touchscreen with 720 × 1280 resolution, dual 2 MP low-light cameras, 120 dB WDR, 3D noise reduction and a wide viewing angle of approximately 119° horizontal / 66° vertical / 142° diagonal. Authentication options include face recognition, IC cards, 125 kHz ID cards, Bluetooth credentials and PIN/password, with support for up to 20,000 users, 20,000 faces, 20,000 passwords, 20,000 Bluetooth cards, 100,000 physical cards and 200,000 records. Face recognition works from around 0.3–2.0 metres, with Dahua specifying 99.9% recognition accuracy and approximately 0.2-second identification time. The terminal also supports two-way audio, automatic snapshots, visitor video messages with a microSD card, information publishing, elevator calling/floor authorization and customizable interface themes. Both VTO6631QB-WP and VTO6631QS-WP are currently presented by Dahua under the same product family and share the same published core specifications. Connectivity includes 10/100 Mbps Ethernet, 2.4 GHz Wi-Fi, Bluetooth 5.2/BLE, SIP, RTSP, HTTP/HTTPS, ONVIF and CGI, while integration interfaces include RS-485, Wiegand, 2 alarm inputs, 1 alarm output, exit button, door-status input and lock-control output. The unit can also provide power to connected access-control hardware—up to 12 V/0.5 A when powered by PoE or 12 V/1.5 A when using the external adapter, subject to system design. It supports standard PoE or 12 VDC/3 A power, surface mounting and outdoor operation from approximately -30°C to +60°C. The enclosure is rated IP65 when installed and sealed according to Dahua’s requirements, making it suitable for outdoor gate and entrance applications. Dahua’s current public documentation does not clearly identify a functional specification difference between the QB-WP and QS-WP variants, so the exact regional or credential variant should be confirmed at quotation stage. VEGA Digital IT Solutions LLC provides the Dahua VTO6631QB-WP, VTO6631QS-WP and related Dahua Ultra Series IP video-intercom products as a professional supplier, vendor and system integrator across Dubai and the UAE. VEGA Digital can integrate these stations with Dahua indoor monitors, master stations, IC/ID credentials, Bluetooth mobile access, electromagnetic locks, electric strikes, exit buttons, door contacts, emergency break-glass units, Wiegand/RS-485 readers, elevator-control interfaces, PoE switches, DMSS/DSS platforms and structured network infrastructure. System-installation services include site survey, entrance-station positioning, PoE and network/VLAN design, face/card/PIN/Bluetooth enrollment, Wi-Fi setup, SIP configuration, lock and sensor wiring, RS-485/Wiegand integration, elevator floor-permission programming, indoor-monitor pairing, mobile-app configuration, testing, commissioning, troubleshooting and future expansion—providing a secure, scalable and centrally managed Dahua smart video-intercom and access-control solution across the UAE.
