Door Interface

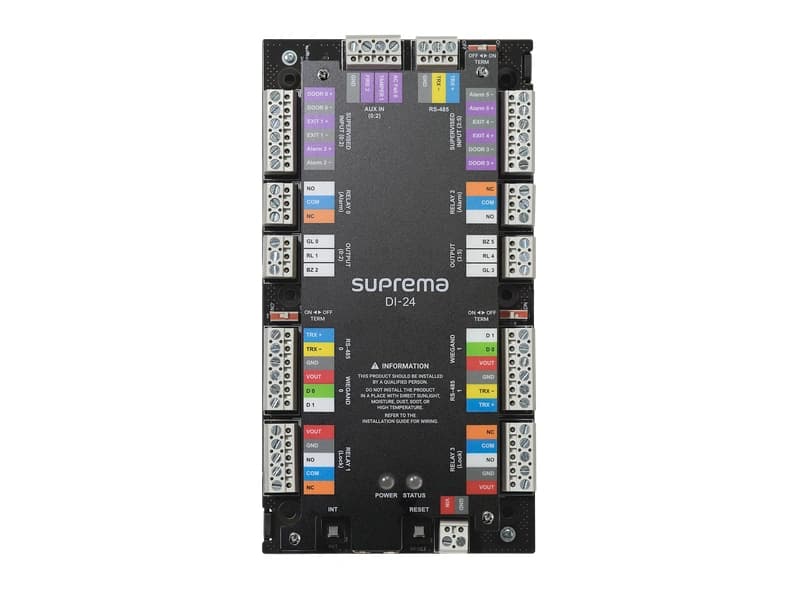

The Suprema DI-24 Door Interface is a professional 2-door, 4-reader access-control expansion module designed for corporate offices, commercial buildings, data centres, educational facilities and other enterprise security environments. It integrates directly with the Suprema CoreStation series through RS-485, allowing organisations to expand door capacity without deploying a separate intelligent controller at every access point. The DI-24 supports up to four RFID readers and two doors, with three RS-485 channels supporting OSDP V2, two Wiegand interfaces, four relay outputs, six configurable or supervised inputs, six outputs and three auxiliary inputs for AC power failure, tamper and fire-alarm integration. Its built-in cryptographic hardware and OSDP secure communication capabilities help provide a robust architecture for modern access-control systems.A major feature of the DI-24 is its offline access-control capability, which enables the module to continue managing supported door-access functions even if communication with the main CoreStation controller is temporarily interrupted. The module can also provide power to two readers and two door locks, simplifying panel design and reducing additional power-supply requirements in suitable installations. When used with a CoreStation 20 or CS-20P, up to 16 DI-24 modules can be connected through RS-485; Suprema documents a fully expanded configuration supporting as many as 68 readers and 34 doors, making the platform suitable for scalable multi-door deployments.As a trusted Suprema supplier and professional access-control system integrator in Dubai, VEGA Digital provides system consultation, design, supply, installation, configuration, testing, commissioning and technical support for the Suprema DI-24 across Dubai and the UAE. VEGA Digital can integrate the DI-24 with Suprema CoreStation controllers, XPass and X-Station readers, OSDP/RFID readers, electromagnetic and electric locks, exit buttons, door contacts, fire-alarm interfaces, turnstiles, gate barriers, elevators, CCTV systems and BioStar 2 management software, delivering a complete centrally managed security solution rather than simply supplying the hardware.
