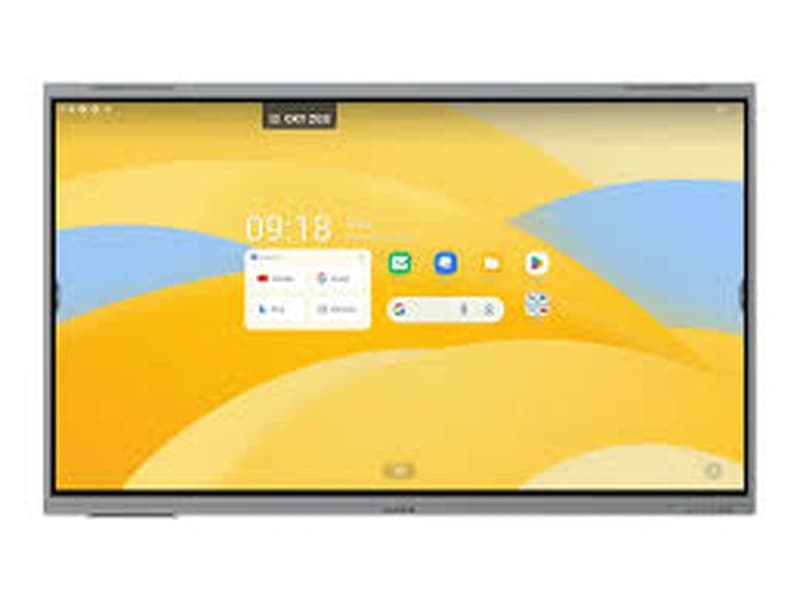

MAXHUB Interactive Flat Panel

Model : E8630

Key Features

86-inch 4K UHD Screen: Crystal-clear 3840 x 2160 resolution with 1.07 billion colors (10-bit) and a 98% sRGB color gamut.
Eye Protection: TÜV-certified Low Blue Light and Flicker-Free technology reduce strain during long viewing sessions.
Anti-Glare Glass: 25% haze anti-glare surface for bright rooms.

40-Point Multi-Touch: Infrared touch tech with ±1.5mm high precision.
MAXHUB Think&Ink: Provides a natural, fluid pen-to-paper writing experience.

Google EDLA Certified Android 14
AI-Powered Performance: Octa-core CPU backed by a dedicated 6 TOPS NPU and powerful graphic processors for seamless multitasking.
Storage & Memory: Equipped with 8GB RAM and 128GB internal storage.

SkyWave 2.2 Audio: Built-in 4-speaker system (2x12W + 2x25W) delivering room-filling sound.
Versatile Ports: Includes full-function USB Type-C (with 65W power delivery), multiple HDMI inputs, USB 3.0 ports, VGA, DisplayPort, and RJ45 LAN slots

Get a Free Quote Download specification

Overview

The MAXHUB Interactive Flat Panel E8630 is a premium 86-inch 4K UHD interactive display designed for classrooms, universities, training centres, corporate presentation rooms and collaborative learning environments. It features an IPS panel with 3840 × 2160 resolution, 10-bit colour depth, 98% sRGB colour gamut, ΔE≤1 colour accuracy, 400-nit typical / 450-nit maximum brightness and 178° viewing angles, delivering clear, accurate visuals even in larger rooms. Its built-in system runs Android 14 with Google EDLA certification, powered by an octa-core A72/A53 processor, 6-TOPS NPU, 8GB RAM and 128GB storage, providing smooth performance for presentations, whiteboarding, Google Workspace applications and interactive teaching.For natural collaboration, the MAXHUB E8630 incorporates Think&Ink technology with 40-point infrared multi-touch, ≤5 ms response time and ±1.5 mm touch accuracy, allowing several users to write, annotate and manipulate content simultaneously. The panel includes MAXHUB’s SkyWave 2.2-channel audio system with 2 × 8W + 2 × 18W output, providing powerful integrated sound for teaching and multimedia without necessarily requiring external speakers. Connectivity is extensive, including three HDMI inputs, HDMI output, DisplayPort, USB 3.0, USB 2.0, two USB-C ports, Gigabit LAN, RS-232, Wi-Fi 6 and Bluetooth 5.2.As a trusted MAXHUB supplier and professional AV system integrator in Dubai, VEGA Digital provides consultation, supply, installation, configuration and complete system integration of the MAXHUB Interactive Flat Panel E8630 for schools, universities, corporate offices, training centres and collaboration spaces across Dubai and the UAE. VEGA Digital can integrate the E8630 with MAXHUB video conferencing cameras and video bars, OPS computers, wireless presentation systems, professional microphones and speakers, room-control solutions, network infrastructure and structured cabling, delivering a complete interactive AV environment rather than simply supplying the display.
