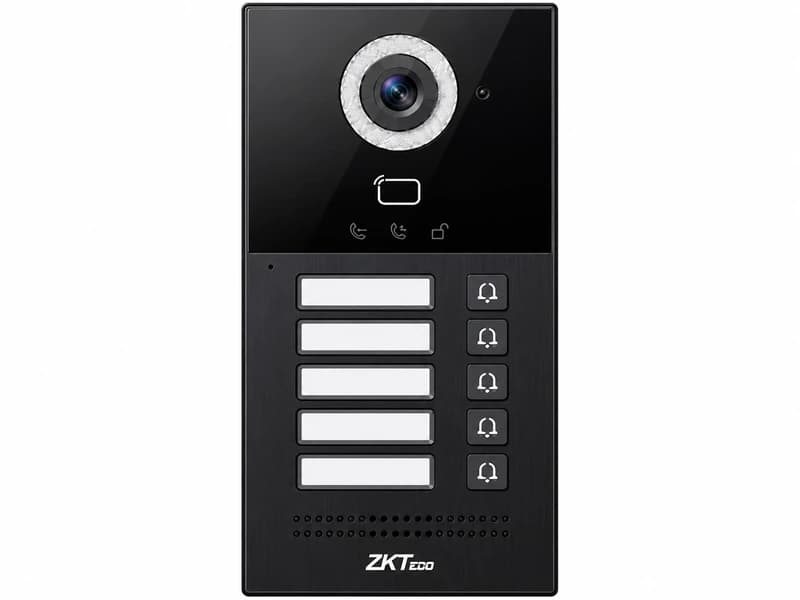

ZKTeco VE05-B21L

The ZKTeco VE05-B21L Multi-Tenant Smart Video Intercom Outdoor Station is designed for apartment buildings, residential compounds, offices and multi-unit properties requiring integrated visitor communication and door access. It features five dedicated call buttons, a 2 MP CMOS camera with digital WDR, white LED supplementary lighting and 720p video at up to 25 fps, providing clear visitor identification across varying lighting conditions. The camera offers approximately 110° horizontal, 60° vertical and 125° diagonal viewing angles, while H.264 video compression and G.711 audio support reliable two-way communication with compatible indoor monitors. For access control, the VE05-B21L reads both 13.56 MHz IC cards and 125 kHz ID cards, supporting up to 20,000 users and 60,000 cards. It also provides two relay outputs for controlling two doors, two inputs, Wiegand, RS485, tamper alarm, SIP 2.0 networking, PoE IEEE 802.3af or 12 VDC power, and a robust aluminium/tempered-glass enclosure rated IP65 and IK06 for outdoor deployment.For projects requiring a single-entrance configuration rather than five dedicated apartment call buttons, the related ZKTeco VE01-B25L Smart Video Intercom Outdoor Station provides many of the same core capabilities in a more compact 168 × 88 × 34 mm enclosure. It uses a 2 MP CMOS camera, digital WDR, white LED illumination, H.264 video, 1280 × 720 resolution at up to 25 fps, built-in microphone and speaker, and SIP-based two-way communication. Like the VE05-B21L, it supports IC and ID credentials with 20,000-user / 60,000-card capacity, two relay outputs, two inputs, Wiegand and RS485 interfaces, Ethernet connectivity, PoE or 12 VDC power, tamper protection and IP65 / IK06 environmental protection. The VE01-B25L additionally lists ONVIF among its supported network protocols, which can assist integration with compatible surveillance or video-management environments. In practical terms, the VE05-B21L is optimized for multi-tenant calling with five physical call buttons, while the VE01-B25L is a streamlined single-station solution for gates, villas, reception entrances and controlled-access doors.As an organized ZKTeco partner and system integrator across the UAE, VEGA Digital IT Solutions LLC can provide complete deployment of VE05-B21L and VE01-B25L systems, including site survey, IP-network design, Cat6 cabling, PoE switching, wall mounting, SIP configuration, indoor-monitor integration, card enrolment, Wiegand/RS485 integration and electric-lock connection. VEGA Digital can connect the two relay outputs to electric strikes, magnetic locks, gate controllers or other compatible door hardware, configure apartment call destinations, credential databases and tamper alarms, and integrate supported models with compatible access-control and video-management platforms. Final commissioning can include camera-angle adjustment, day/night image testing, SIP call verification, card-reading tests, relay and door-release validation, network and PoE checks and end-user training, providing a complete ZKTeco IP video-intercom and access-control solution for villas, apartment buildings, offices, gated communities and commercial developments throughout the UAE.
