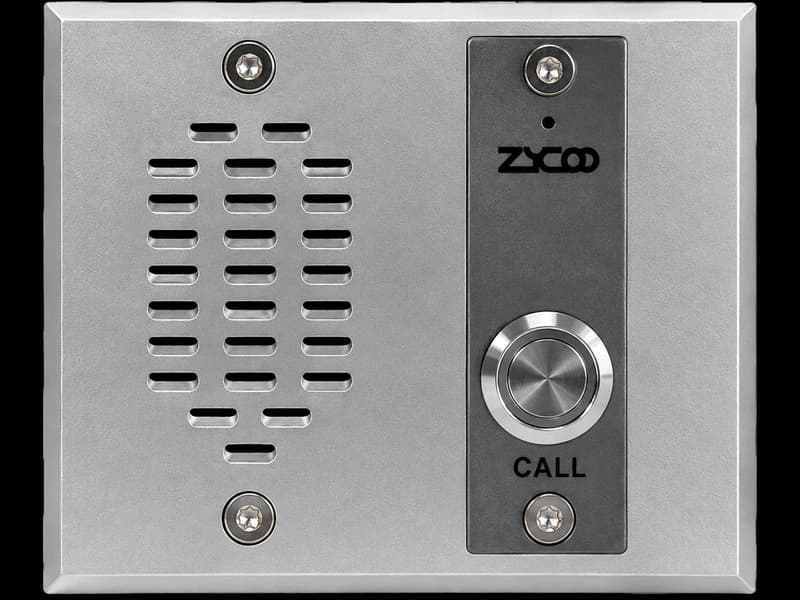

ZYCOO VI-A05

The ZYCOO VI-A05 Network Intercom is a rugged SIP-based audio intercom designed for entrance communication, access control, emergency calling and assistance points in offices, residential developments, parking facilities, schools, healthcare sites, warehouses and commercial buildings. It provides clear two-way full-duplex audio using Acoustic Echo Cancellation, Adaptive Noise Reduction and Automatic Gain Control, with a 5 W speaker, 96 dB ±3 dB sensitivity and 100 Hz–20 kHz frequency response. The VI-A05 supports up to five programmable call destinations with automatic failover polling when a destination is busy, unanswered or unavailable, helping ensure important calls reach an operator. It supports three SIP account lines, standard SIP, multicast and peer-to-peer communication, and can register with the ZYCOO IP Audio Center or third-party SIP/IP-PBX platforms. For entrance security, an operator can remotely activate a connected door strike through DTMF relay control during a call. The enclosure carries IK10 vandal resistance and IP66 dust/water protection, includes a built-in tamper alarm, supports IEEE 802.3af/at PoE, and measures approximately 114 × 114 × 40 mm, making it suitable for demanding indoor and outdoor installations. The closely related ZYCOO VI Series provides additional configurations for different communication requirements. The VI-V05 adds HD video intercom with 1280 × 720 resolution at 25 fps, enabling operators to visually verify visitors before granting access; it also supports ONVIF integration, allowing its video stream to work with compatible video-management and surveillance systems. The VI-D05 uses two independently configurable call buttons, allowing separate destinations such as Reception and Emergency, while retaining the audio, relay-control, PoE, SIP and failover capabilities of the VI-A05. All three models support flush mounting in a standard 2-gang electrical box or surface mounting using the ZYCOO EA-MB2 aluminium mounting box. Configuration and system management are available through a web GUI, and ZYCOO also provides API capabilities for integration with broader building-security and communications platforms. This allows designers to use VI-A05 for straightforward voice access, VI-D05 where two distinct assistance destinations are required, and VI-V05 where visual verification is necessary.As an organized ZYCOO partner and system integrator across Dubai, VEGA Digital IT Solutions LLC can provide complete VI-A05 system deployment including site survey, network design, structured Ethernet cabling, PoE-switch connection, wall or flush mounting, EA-MB2 mounting-box installation, SIP-extension configuration and integration with ZYCOO IP Audio Center, ZYCOO IP-PBX or compatible third-party SIP servers. VEGA Digital can also integrate the intercom relay with electric strikes, magnetic locks, gate controllers or other access devices, configure DTMF door release, call-routing and five-destination failover, program SIP accounts, set audio parameters and configure tamper notifications. For larger projects, VI-A05, VI-D05 and VI-V05 units can be deployed throughout gates, receptions, parking areas, loading bays and emergency/help points and centrally managed as part of a unified IP communications environment. Final services can include network and PoE verification, SIP registration, relay and door-release testing, audio-quality optimization, failover testing, commissioning and user training, providing a professionally integrated ZYCOO SIP intercom and access-control solution throughout Dubai and the UAE.
