CAME 705EN1-D

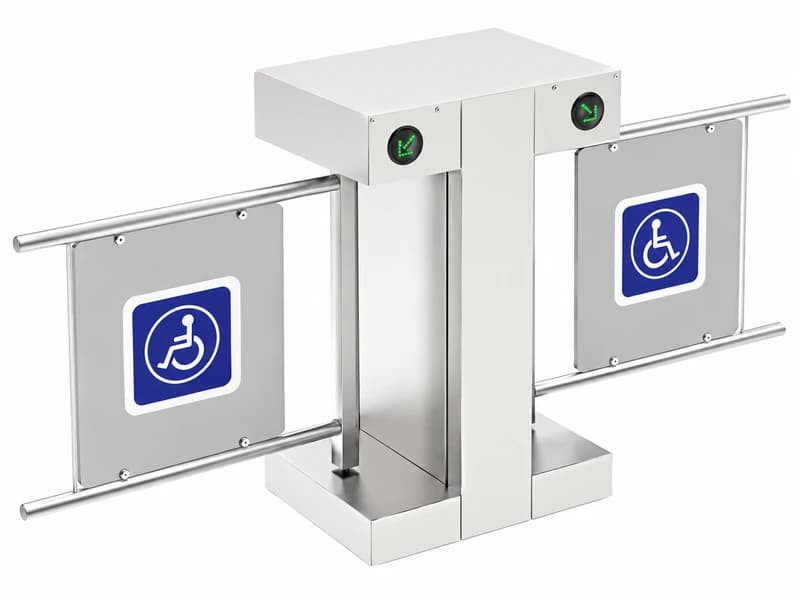

The CAME 705 E N1 D Motor-Driven Swing Turnstile is a premium double-sided, bi-directional accessible pedestrian gate designed for corporate buildings, commercial towers, hospitals, hotels, government facilities and other entrances where wheelchair-friendly or wide pedestrian passage is required. Its body is manufactured from AISI 304 stainless steel, with optional AISI 316 or painted finishes, and it uses two swing wings available in standard 450 mm or 900 mm lengths. Indoor versions can use stainless-steel tubular frames with acrylic infill panels, while adaptations are available for outdoor installations. The system is engineered for continuous 24/7 operation, operates from 110/220 VAC, 50/60 Hz, and CAME specifies an operating range of approximately -20°C to +68°C, extendable to around -50°C with an optional heater. LED status/direction indicators guide pedestrians, while the electronic controller allows configuration of operating modes and connection to third-party access-control systems through dry-contact inputs/outputs. In emergency mode or during a power failure, the wings permit free passage, making the unit particularly suitable for accessible and emergency-egress applications. Optional communication modules support RS232, RS485 and TCP/IP integration. The related CAME 700 E / 700 E N1 is a different style of pedestrian-control product: rather than an accessible swing gate, it is a waist-height tripod turnstile intended for controlling standard pedestrian lanes. The 700 E N1 uses AISI 304 stainless-steel construction, with optional AISI 316 or painted versions, and can be supplied in electromechanical or motor-driven configurations. CAME specifies indoor/outdoor use, 100% continuous 24/7 duty, 110/220 VAC operation and temperatures from approximately -20°C to +68°C. Its operating mode can be configured through the controller, PC or supported application, and it accepts third-party access-control signals through dry contacts; optional RS232, RS485 and TCP/IP modules allow higher-level system integration. CAME lists typical throughput of around 30 passages per minute in manual/electromechanical operation and around 25 passages per minute in motor-driven operation, with higher maximum cycle rates depending on configuration. A practical entrance can therefore combine 700 E tripod lanes for normal pedestrian traffic with a 705 E N1 D accessible swing lane for wheelchair users, luggage, pushchairs or wider passage requirements. As an organized CAME partner and system integrator across Dubai and the UAE, VEGA Digital IT Solutions LLC can provide complete implementation of the 705 E N1 D and 700 E systems, including site survey, pedestrian-flow assessment, lane-width planning, floor preparation, mechanical anchoring, power and control cabling, turnstile programming and full access-control integration. VEGA Digital can connect the gates with RFID/smart-card readers, fingerprint or facial-recognition terminals, QR-code visitor systems, reception controls, visitor-management software, fire-alarm interfaces and building-management platforms, using dry contacts or optional RS232/RS485/TCP-IP communications where required. Final commissioning can include direction and operating-mode programming, credential-reader testing, emergency/free-passage verification, power-failure testing, throughput checks, accessibility validation and operator training, delivering a complete CAME pedestrian access and turnstile solution for offices, hospitals, hotels, government facilities, commercial towers and premium developments throughout Dubai and the UAE. CAME currently lists both the 705 E N1 D accessible swing turnstile and 700 E family within its pedestrian-access portfolio.
