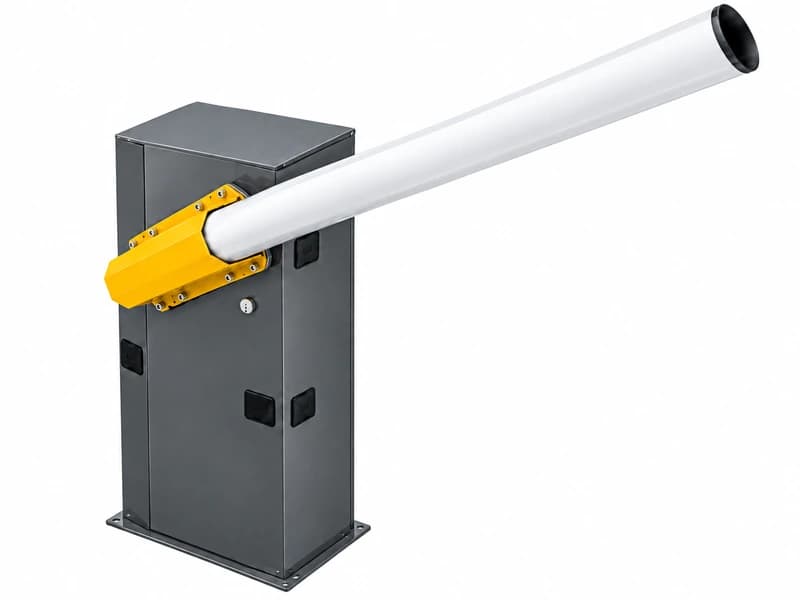

CAME GARD PX
For Continuous-duty, Very high-traffic vehicle Entrances
Key Features
High Durability: Tested for intensive use up to 10 million cycles (MCBF). [1]
Fast Operation: Opens in 1 to 2 seconds depending on boom length (up to a 3.8m clear passage).
Integrated Lighting: Features high-visibility red and green LED lights on the crown and boom that function like traffic signals (red for closed/moving, green for open).
Smart Electronics: Includes a control board with a graphic display, full-text menu, USB port for data backup, and CAME Connect compatibility for remote digital management.
Safety & Efficiency: Offers smooth soft-start and soft-stop movements, obstacle detection, and an extended-range power supply (120–230V AC) for energy savings.
Overview
The CAME GARD PX Brushless Automatic Barrier is engineered for continuous-duty, very high-traffic vehicle entrances such as shopping malls, commercial parking facilities, airports, hotels, hospitals, residential communities and industrial sites. The current GPX40MGS / 803BB-0120 configuration supports a maximum clear passage of approximately 3.8 metres and combines a 36 V DC brushless motor with an oil-bath gearbox, providing quiet operation, precise movement and reduced maintenance requirements. CAME rates GARD PX for an impressive MCBF of 10 million cycles, continuous service and an adjustable 90° opening time of approximately 1–2 seconds. Other technical characteristics include 100–240 V AC input power, 270 W consumption, IP54 protection and operation from -20°C to +55°C, extendable to approximately -40°C with the appropriate heater accessory. Advanced Speed Control continuously uses encoder feedback to adapt speed and deceleration according to boom position, while high-visibility red/green LED lighting can be installed on the barrier crown and boom. The control board includes a display, safety inputs and support for CAME CONNECT and CAME KEY, while native RS485/Modbus communication enables integration with compatible third-party access-control, parking and building-management systems.Within CAME’s current automatic-barrier portfolio, several related models allow VEGA Digital to select the correct solution according to lane width and traffic demand. The GARD GT4 covers passages up to approximately 5 m, with 2–6 second opening and an MCBF of about 3 million cycles, making it suitable for intensive standard-width entrances. The larger GARD GT8 extends coverage to approximately 7.8 m, with 4–8 second operation and the same 3-million-cycle MCBF, making it more appropriate for industrial or wide commercial lanes. For projects where the extreme continuous-duty capability of GARD PX is unnecessary, GARD LS4 provides approximately 3.8 m clearance and GARD LS6 approximately 6.5 m, both rated around 1.5 million cycles. In comparison, GARD PX is specifically positioned for very intensive, nonstop operation, combining its 3.8 m clearance with 1–2 second movement and 10-million-cycle reliability. CAME also offers accessories such as boom LED kits, balancing springs, battery-backup control kits, access-control decoder boards and articulated-boom solutions for installations with restricted ceiling height.As an organized CAME partner and system integrator across the Middle East, VEGA Digital IT Solutions LLC can provide complete GARD PX implementation from site survey and vehicle-flow analysis through foundation preparation, barrier positioning, mains power and low-voltage cabling, boom installation, spring balancing and initial calibration. During commissioning, VEGA Digital can select the opening direction, enter the correct boom length and perform the automatic calibration required by the Advanced Speed Control system, while integrating safety devices such as photocells, loop detectors, safety edges, red/green boom LEDs, battery backup and impact-release accessories according to the project requirements. The barrier can then be connected with RFID/UHF vehicle readers, ANPR/LPR cameras, access-control systems, parking-management platforms, ticketing equipment, intercoms, visitor-management software and BMS platforms, using conventional control interfaces or RS485/Modbus where appropriate. Final commissioning can include opening/closing speed adjustment, obstacle-detection testing, photocell and loop verification, access authorization, LED status testing, emergency operation and operator training, delivering a robust CAME GARD PX vehicle-access solution for high-traffic parking and security projects throughout Dubai, the UAE and the wider Middle East.
