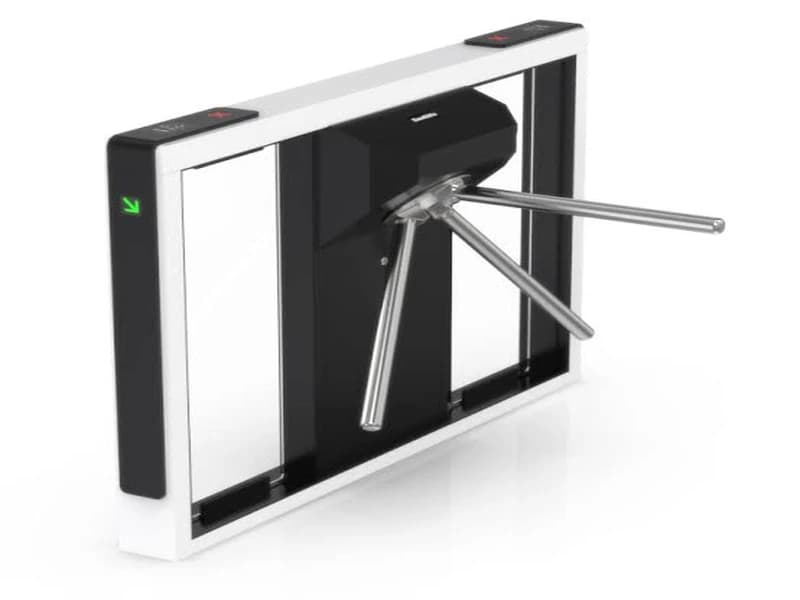

DaoSafe DS-Q10

The DaoSafe DS-Q10 Quantum Tripod Turnstile is a modern half-height pedestrian access-control gate designed for offices, commercial buildings, schools, factories, gyms, transport facilities and other controlled entrances. Its slim cabinet combines galvanized steel with black/white powder coating, tempered-glass reader panels and SUS304 stainless-steel tripod arms. DaoSafe specifies a 550 mm passage width, approximately 35 persons per minute throughput, selectable single-direction or bidirectional operation, and an MCBF of around 10 million cycles. The unit operates from 110/220 VAC, 50/60 Hz, uses 24 VDC internally, consumes approximately 20 W, and supports operation from about -20°C to +75°C. Standard protection is IP54, with IP65 and indoor/outdoor configurations available as customization options. Red and green LED indicators display passage status, and the tripod arms automatically drop during power failure or emergency conditions to provide an evacuation route.The DS-Q10 is designed for straightforward integration with practically any modern access-control platform. DaoSafe lists support for RFID cards, QR/barcode readers, fingerprint devices, facial recognition, palm-vein authentication, touchless buttons and remote controls, while third-party access controllers can communicate through dry contact, relay signals or RS485. The automatic-reset function locks the tripod again if an authorized user does not pass within the programmed period, and its one-person-per-rotation design helps reduce unauthorized following. DaoSafe’s wider Quantum family includes models such as the DS-Q20 optical swing turnstile, DS-Q30 optical flap turnstile, DS-Q50 tripod turnstile and DS-Q70 speed gate, allowing larger projects to combine different pedestrian-control technologies while maintaining a similar black-and-white design language. The manufacturer also supports customization of cabinet colour, dimensions, branding and reader integration to match different architectural requirements.As an organized DaoSafe partner and system integrator across Dubai, VEGA Digital IT Solutions LLC can provide complete DS-Q10 implementation beginning with site survey, pedestrian-flow assessment and lane planning, followed by floor marking, mechanical anchoring, 110/220 VAC power provision, low-voltage control wiring, access-reader installation and RS485/dry-contact integration. VEGA Digital can connect the turnstile with RFID/smart-card readers, facial-recognition terminals, fingerprint devices, QR visitor credentials, employee attendance systems, visitor-management platforms and centralized access-control software, while fire-alarm or emergency-release logic can be configured so the arms drop automatically when required. Final commissioning can include tripod alignment, locking and reset tests, reader authorization, LED indication verification, emergency drop-arm testing, passage-direction programming and operator training, delivering a complete DaoSafe pedestrian access-control solution for offices, commercial towers, schools, gyms, factories and other facilities throughout Dubai and the UAE. DaoSafe notes that the DS-Q10 is designed for simple installation by floor fixing, power connection and access-control interfacing.
