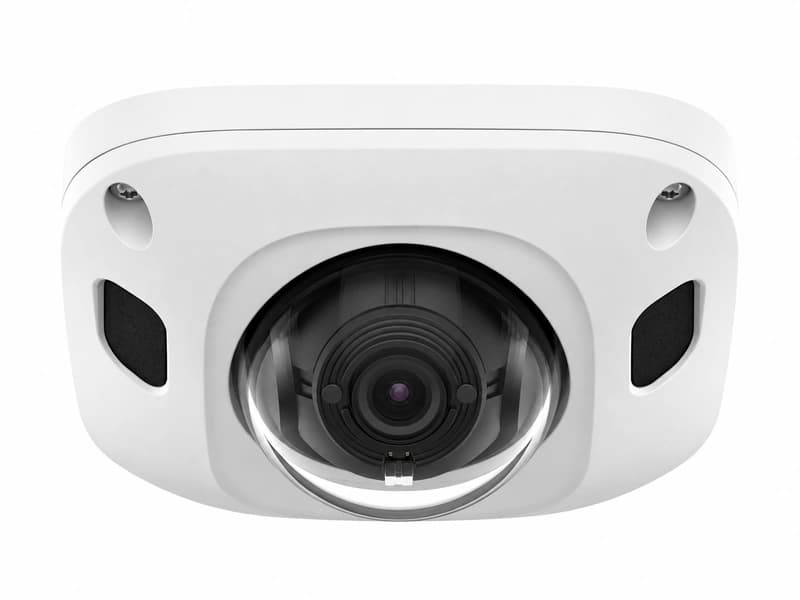

HANWHA TNV-C8034RM

The Hanwha Vision TNV-C8034RM is a specialized 5 MP AI IR mobile network camera engineered for transportation, cash-in-transit vehicles, buses, rail systems, mobile surveillance and other installations exposed to vibration, shock and changing environmental conditions. It uses a 1/2.8-inch CMOS sensor and delivers up to 2592 × 1944 resolution at 30 fps, with a 6.0 mm fixed F1.65 lens providing approximately 50° horizontal, 37° vertical and 64° diagonal coverage. The camera offers colour imaging down to approximately 0.03 lux, black-and-white imaging down to 0.003 lux and IR illumination up to 30 metres. Image processing includes 120 dB WDR, ClearHDR, WiseNR II AI noise reduction, SSNR V, electronic image stabilization using a built-in gyro sensor, defog and lens-distortion correction. Its NPU-based intelligence can classify people and vehicles, provide BestShot thumbnails and support object detection, line crossing/direction, loitering, intrusion, entrance/exit, people counting, queue management, heat mapping and vehicle counting. The camera also incorporates a built-in microphone, heater, shock detection, hard-coated dome bubble, 256 GB microSD support, M12 network connector and PoE, while IP66 and IK10 protection plus EN50155 railway/mobile compliance make it particularly suitable for demanding transport environments. VEGA Digital IT Solutions LLC, as a SIRA-approved CCTV/security solutions provider in Dubai and Hanwha Vision supplier and system integrator across the UAE, can integrate the TNV-C8034RM into complete mobile CCTV, recording, networking and centralized monitoring solutions. The related Hanwha Vision TNV-C8014RM uses the same rugged 5 MP mobile-camera platform but provides a significantly wider viewing angle for applications where broad situational awareness is more important than narrower long-distance coverage. It uses a 3.0 mm fixed lens with approximately 100° horizontal, 73° vertical and 129° diagonal field of view, while retaining 5 MP resolution, 30 fps, 30 m IR, AI-based analytics and business intelligence, electronic image stabilization, shock detection, heater, built-in microphone, hard-coated dome bubble, M12 connectivity, PoE, IP66, IK10 and EN50155 compliance. This makes the TNV-C8014RM particularly suitable for bus interiors/exteriors, railway vehicles, cash-in-transit monitoring and other mobile applications where one camera must cover a wider scene, while the TNV-C8034RM's 6 mm lens is better suited where a tighter field of view and greater subject detail are needed. Importantly, the exact TNV-C8014RM is specifically listed in SIRA's published Approved Camera List under certificate SIRA/2026/7/14507, so VEGA Digital can reference that model-specific approval for Dubai projects after confirming that the certificate remains current at the time of submission. For system installation and SIRA-oriented deployment, VEGA Digital first determines whether the camera will be used in a fixed facility or mobile environment, then assesses viewing direction, passenger or driver areas, vehicle entrances/exits, cash compartments, mounting position, vibration exposure, lighting, IR requirements, network topology, recording retention and power availability. For transport installations, the M12 Ethernet interface, PoE supply, EN50155 compliance, shock detection and EIS are particularly important for maintaining reliable video under vibration and vehicle movement. The TNV-C8014RM is positioned where its wide 3 mm field of view can monitor a large interior or vehicle zone, while TNV-C8034RM is used where the narrower 6 mm view provides more detailed observation. VEGA Digital configures H.265/H.264, WiseStream III, 120 dB WDR, WiseNR II, IR, human/vehicle classification, virtual lines and areas, loitering/intrusion detection, people or vehicle counting, privacy masking, NTP synchronization, edge/NVR recording and cybersecurity, followed by vibration-aware mounting checks, day/night testing, IR verification, analytics validation, recording/playback and retention testing, network and power-failure tests and complete as-built documentation.
