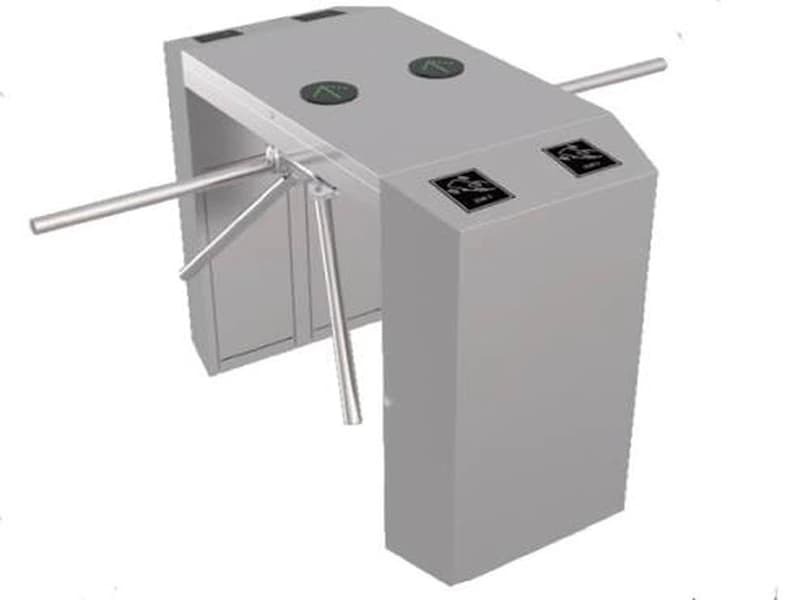

VANTAGE V-PM1600DC-TST3

The VANTAGE V-PM1600DC-TST3 Half Height Dual Lane Tripod Turnstile Gate Barrier is designed for high-traffic pedestrian access control at corporate buildings, transport facilities, staff entrances, stadiums, commercial properties and other controlled environments. It provides two pedestrian lanes within a compact dual-lane structure, supports selectable single-direction, bi-directional, always-free and always-locked operating modes, and is engineered for heavy-duty 24-hour continuous operation. Each passage provides approximately 550 mm clear width, with a throughput of up to 35 persons per minute, while LED direction indicators on each side clearly guide users through the authorized lane. The turnstile automatically resets after each successful passage, includes an adjustable timeout delay, and can accept authorization signals from compatible RFID card readers or biometric readers through normally-open (NO) input integration. According to VANTAGE’s datasheet, the system uses a 100–240 VAC power supply, 24 VDC operating voltage, DC electromagnetic drive, maximum 35 W consumption, IP44 protection, and supports operation from approximately -25°C to +70°C. The published dimensions excluding the tripod arms are approximately 1200 × 560 × 980 mm, with a net weight of about 52 kg including the arms, and VANTAGE lists CE, FCC and RoHS compliance. The V-PM1600DC-TST3 is particularly useful where two controlled pedestrian lanes are required without installing two completely independent turnstile cabinets. Its combination of dual-lane access, bi-directional operation, automatic arm reset and external reader integration makes it suitable for employee attendance systems, visitor-management installations and centralized access-control platforms. VANTAGE’s current turnstile portfolio positions the V-PM1600DC-TST3 as its dual-lane half-height tripod model, with current company guidance listing throughput up to 35 people per minute, IP44 protection and continuous heavy-duty use; VANTAGE highlights dual-lane tripod turnstiles for locations such as stadiums, event venues and transport hubs where high pedestrian volumes must be handled within a limited footprint. For a VEGA Digital project, the turnstile can be integrated with RFID proximity or smart-card readers, fingerprint terminals, facial-recognition devices, QR-code readers, attendance systems and third-party access controllers, with each lane programmed according to entry/exit policies. The access system can therefore validate the credential first and then provide the dry-contact authorization signal required to release the corresponding tripod mechanism, helping create a controlled and traceable pedestrian flow.As an organized VANTAGE partner and system integrator serving the Middle East, VEGA Digital IT Solutions LLC can provide complete implementation of the V-PM1600DC-TST3, beginning with site survey, pedestrian-flow analysis and lane-position planning, followed by floor preparation, mechanical anchoring, 100–240 VAC power provision, low-voltage control cabling and reader/access-controller integration. VEGA Digital can configure entry and exit directions, credential-reader logic, timeout settings, automatic reset behavior and connection to centralized attendance or visitor-management software, while multiple V-PM1600DC-TST3 units can be arranged together where larger multi-lane entrances are required. Final commissioning can include lane-alignment checks, tripod rotation and locking tests, LED direction verification, RFID/biometric authorization testing, access-event confirmation, controller-interface testing and operator training. This enables VEGA Digital to deliver a complete VANTAGE pedestrian entrance-management solution for offices, commercial towers, schools, transport facilities, industrial sites and high-traffic developments throughout Dubai, the UAE and the wider Middle East. VANTAGE currently lists the V-PM1600DC-TST3 within its active half-height turnstile range.
