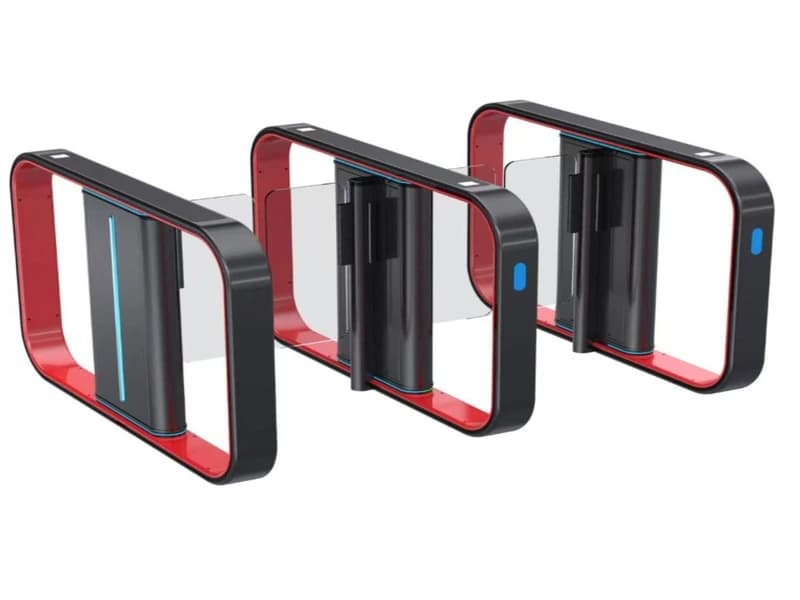

VANTAGE V-PM4750SC/DC- SGT3

The VANTAGE V-PM4750SC/DC-SGT3 Premium Aluminum Alloy Swing Gate Barrier is a heavy-duty automatic pedestrian entrance system developed for corporate offices, commercial towers, hotels, banks, government buildings and other high-traffic facilities. It is available in single- or dual-machine-core configurations, supports unidirectional or bidirectional operation, and provides a standard 600 mm passage with an optional 900 mm lane. VANTAGE specifies throughput of approximately 35–40 persons per minute, opening/closing in about 0.5–1.5 seconds, and a default passage time of 5 seconds adjustable up to 25 seconds. The system uses a servo brushless motor, is rated for more than 15 million operating cycles, and incorporates a 48-point safety light curtain/bar for pedestrian protection. Other features include automatic reset after each passage, LED direction indication, RFID or biometric-reader integration through an NO input, fail-safe free passage, fire-alarm evacuation support, optional RS232/RS485 communication, DC 24 V operation and IP40 protection. Its 2 mm powder-coated aluminium body and transparent acrylic side door provide a modern architectural appearance, while the specified operating range of approximately -25°C to +70°C makes it suitable for demanding indoor entrance environments. The related V-PM4730SC/DC-SGT3 provides the same 600 mm standard / 900 mm optional lane width, approximately 35–40 persons/minute throughput, and 0.5–1.5 second movement, but uses eight pairs of infrared sensors for pedestrian protection. It also employs a servo brushless motor rated for more than 15 million cycles, supports fire-alarm free passage and relay/optional RS232/RS485 integration, and uses a powder-coated aluminium body with acrylic side and swing panels; its enclosure is rated IP41.The V-PM4710SC/DC-SGT3 is the faster related model, maintaining the same 600/900 mm lane options and 35–40 persons/minute throughput while reducing opening/closing time to approximately 0.3–0.5 seconds. It uses a 100 W DC brushless motor, 24-point light-curtain sensing plus four pairs of infrared sensors, supports fail-safe or fail-lock modes, provides fire-alarm integration and is rated for more than 10 million cycles with IP44 protection. In practical project selection, the V-PM4750 emphasizes premium aluminium construction and a dense 48-point safety curtain, the V-PM4730 offers a similar premium architecture with eight IR sensor pairs, and the V-PM4710 is particularly suitable where faster gate movement is required. As an organized VANTAGE partner and system integrator across the UAE, VEGA Digital IT Solutions LLC can provide complete installation of the V-PM4750SC/DC-SGT3, V-PM4730SC/DC-SGT3 and V-PM4710SC/DC-SGT3, starting with site survey, pedestrian-flow analysis and selection of the correct single/dual-core configuration and 600 or 900 mm lane width. Installation can include floor preparation and mechanical anchoring, power and low-voltage cabling, RFID/card readers, facial-recognition terminals, fingerprint readers, QR-code devices, attendance systems, visitor-management platforms, RS485/relay wiring and fire-alarm interfacing. VEGA Digital can then commission the installation by aligning the swing panels and safety sensors, setting passage timeout and opening/closing parameters, testing anti-tailgating and anti-reverse functions, verifying fail-safe/fail-lock behaviour, confirming credential authorization and fire-alarm evacuation, and training end users—providing a complete VANTAGE pedestrian access-control solution for offices, hotels, banks, commercial developments and premium buildings throughout Dubai and the wider UAE. VANTAGE currently lists all three models in its active swing-gate portfolio.
