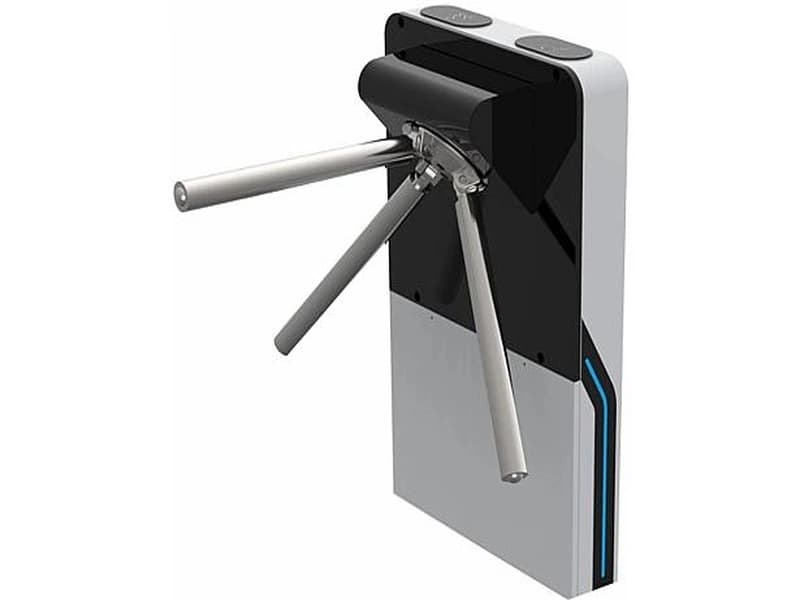

VANTAGE V-PM1800M-TST3

The VANTAGE V-PM1800M-TST3 Half Height Automatic Motorized Tripod Turnstile Gate is a premium pedestrian entrance-management solution designed for corporate offices, commercial towers, hotels, government buildings, schools, gyms and other high-traffic controlled entrances. It uses a heavy-duty electromechanical motorized drive with a rated service life of approximately 10 million operating cycles and supports 100% duty-cycle operation. The standard passage width is 550 mm, with throughput of approximately 35–40 persons per minute, and the turnstile can operate in either unidirectional or bidirectional mode. Key features include an RGB status indicator, LED direction indication, adjustable timeout delay, automatic barrier reset after every authorized passage and integration with RFID or biometric readers through a normally-open input. Electrical specifications include 100–240 VAC input, 24 VDC operating voltage, 50 W power consumption, dry-contact and RS485 communication, IP44 protection and an operating temperature range of approximately -20°C to +70°C. The compact body measures about 600 × 130 × 980 mm excluding the arms, weighs approximately 40 kg including the arms, and carries CE, FCC and RoHS certifications. Safety and access-control integration are important strengths of the V-PM1800M-TST3. VANTAGE provides configurable fail-safe operation, allowing one or both directions to enter free-movement mode during a power or mechanism failure, while the gate can alternatively lock in its home position according to the required security policy. A drop-arm option lowers the horizontal tripod arm to create an unobstructed evacuation route, and direct fire-alarm integration is supported for emergency release. The model can work with third-party RFID smart-card readers, fingerprint terminals, facial-recognition devices, QR-code scanners, ticketing systems and access-control panels, making it suitable for integration with employee attendance, visitor-management and building-security systems. VANTAGE’s current product guidance identifies the V-PM1800M as its fully motorized half-height tripod model, with 35–40 persons/minute throughput, 10-million-cycle service life and smooth powered arm movement, particularly suited to premium indoor entrances where appearance, fast pedestrian flow and reliable continuous operation are required. As an organized VANTAGE partner and system integrator across the UAE, VEGA Digital IT Solutions LLC can provide complete implementation of the V-PM1800M-TST3, starting with site survey, pedestrian-flow assessment and turnstile positioning, followed by floor preparation, mechanical anchoring, 100–240 VAC power provision, low-voltage cabling, RS485/dry-contact wiring and reader installation. VEGA Digital can integrate the turnstile with RFID/card readers, fingerprint or face-recognition terminals, QR visitor systems, attendance software, access controllers, visitor-management platforms and fire-alarm systems, while configuring entry/exit direction, timeout periods, fail-safe behavior and emergency drop-arm operation. Final commissioning can include motor and tripod alignment, credential authorization testing, automatic-reset verification, RGB/LED indicator checks, fire-alarm release testing, emergency fail-safe operation, RS485 communication testing and operator training, delivering a complete VANTAGE pedestrian access-control solution for offices, hotels, commercial buildings, schools, government facilities and premium developments throughout Dubai and the wider UAE. VANTAGE states that its turnstile range supports integration with third-party RFID, biometric and QR-based systems through standard access-control interfaces.
