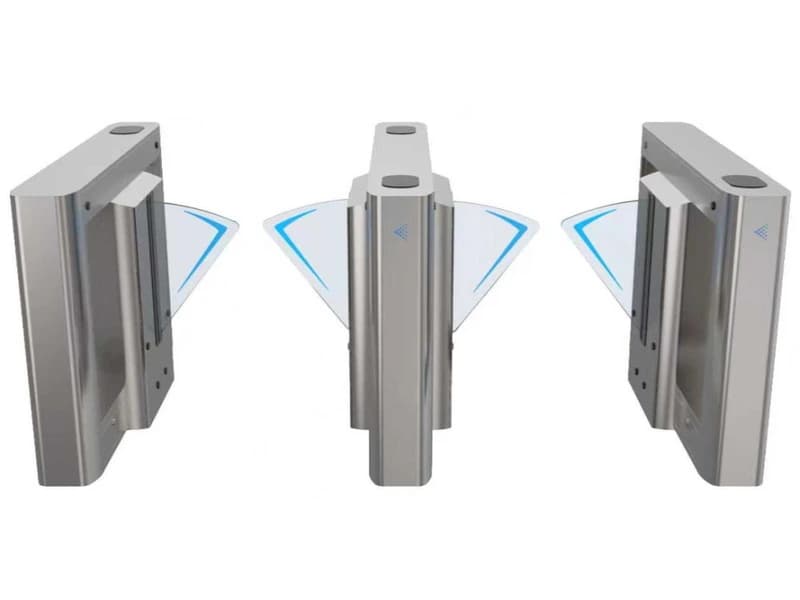

VANTAGE V-PM3440SC/DC-FBT3

The VANTAGE V-PM3440SC/DC-FBT3 Flap Barrier Gate is a premium, heavy-duty motorized pedestrian access solution designed for corporate headquarters, commercial towers, banks, airports, universities, government buildings, transport facilities and other medium-to-high-traffic entrances. Available in single-core and dual-core configurations, it supports unidirectional or bidirectional passage with a standard 550 mm lane width and an optional 900 mm transparent telescopic flap for wider or accessible passages. VANTAGE specifies a throughput of approximately 35–50 persons per minute, opening/closing speed of around 0.5–1.5 seconds, a default 5-second passage time adjustable up to 60 seconds, and a brushless DC drive rated for more than 10 million operating cycles. Security features include six pairs of infrared sensors for anti-clipping, anti-tailgating and anti-reverse detection, automatic barrier reset, LED status indication, adjustable timeout, selectable fail-safe/fail-lock operation and fire-alarm integration for emergency free passage. Integration is supported through NO/NC/COM relay contacts and optional RS485, allowing use with RFID, biometric and third-party access-control readers. The unit operates from 100–240 VAC with 24 VDC internal operation, has maximum consumption around 50 W, IP54 protection, an operating range of approximately -20°C to +70°C, AISI 304 stainless-steel construction with optional 316L, and acrylic flaps. The related V-PM3420SC/DC-FBT3 provides a similar single/dual-core flap-barrier architecture but is positioned around a standard 550 mm passage, approximately 35–40 persons per minute throughput, and faster 0.2–0.8-second opening/closing movement. It uses five pairs of infrared safety sensors for pedestrian protection and anti-tailgating/anti-reverse functions, supports unidirectional or bidirectional operation, automatic reset, LED direction/status indication, fail-safe/fail-lock emergency logic, RFID/biometric reader integration and optional RS232/RS485 communication. Its DC motorized mechanism is rated for more than 5 million cycles, with 100–240 VAC supply, 24 VDC operating voltage, around 35 W maximum consumption, IP44 protection and AISI 304 stainless-steel construction. The V-PM3410SC/DC-FBT3 is another closely related option and adds a 550 mm standard passage with an optional 900 mm transparent telescopic flap, making it particularly useful where a wider accessible lane is required. It handles roughly 35–40 persons per minute, opens and closes in about 0.5–0.8 seconds, uses five infrared sensor pairs, a 40 W brushless DC motor, and is rated for more than 5 million operating cycles; it also supports fire-alarm free passage, fail-safe/fail-lock operation, optional RS232/RS485 communication and AISI 304 stainless-steel construction with optional 316 grade. As an organized VANTAGE partner and system integrator across the Middle East, VEGA Digital IT Solutions LLC can provide complete implementation of the V-PM3440SC/DC-FBT3, V-PM3420SC/DC-FBT3 and V-PM3410SC/DC-FBT3, starting with site survey, pedestrian-flow analysis, lane-width selection and single/dual-core layout planning. Installation can include floor marking and drilling, mechanical anchoring, 100–240 VAC power provision, low-voltage and network cabling, flap alignment, access-reader mounting, relay/RS485 wiring and fire-alarm interface integration. VEGA Digital can integrate the gates with RFID/smart-card readers, fingerprint terminals, facial-recognition devices, QR-code readers, employee attendance systems, visitor-management platforms and centralized access-control software. Final commissioning can include infrared-sensor alignment, anti-tailgating and anti-reverse testing, flap speed and timeout adjustment, fail-safe/fail-lock verification, fire-alarm release testing, reader authorization, multi-lane synchronization and operator training, delivering a complete VANTAGE flap-barrier entrance-management solution for offices, commercial towers, airports, universities, government facilities and premium developments throughout Dubai, the UAE and the wider Middle East. VANTAGE currently lists all three models within its flap-barrier portfolio and describes the range as suitable for integration with RFID, biometric, QR and centralized access-management systems.
