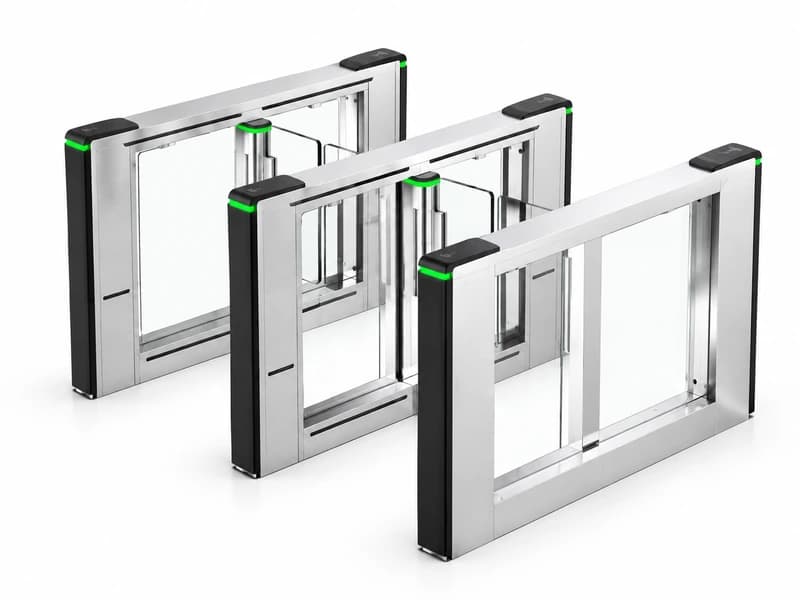

Dahua ASGB6XXY-X

The Dahua ASGB6XXY-X Swing Barrier is a professional pedestrian entrance-control system designed for corporate offices, commercial towers, hotels, government facilities, hospitals, universities and other high-traffic entrances. It uses a 1.5 mm SUS304 stainless-steel cabinet, DC brushless servo motor, and 16 pairs of infrared detectors for accurate pedestrian monitoring and anti-pinch protection. Dahua specifies an MCBF of at least 6 million cycles, a standard 600 mm passage that can be customized up to 1,200 mm, and throughput of approximately 20–60 persons per minute, with unlocking/locking from about 0.5 seconds. The system supports anti-collision, mechanical and IR anti-squeeze protection, anti-tailgating and reverse-intrusion alarms, abnormal-unlock and barrier-fault alarms, second authentication, memory passage, configurable opening/closing speed and automatic opening during a fire emergency. It also includes an embedded controller and IC card reader, supports RS-232/RS-485 and Ethernet, stores up to 100,000 users/cards and 100,000 records, and carries an IPX4 rating for indoor or outdoor use. Barrier arms can be stainless steel or acrylic, making the ASGB6XXY-X suitable for both standard pedestrian and wider accessible lanes. Within the Dahua swing-barrier family, the ASGB6XXS-X is the higher-end integrated authentication version, combining a 7-inch 600×1024 touchscreen, 2 MP dual-lens camera, built-in face recognition, QR-code and IC-card verification, 16 IR detector pairs and a DC brushless servo motor rated for at least 12 million cycles. It supports a standard 600 mm acrylic passage and customized widths up to approximately 1,500 mm with acrylic barriers or 900 mm with tempered glass, with glass heights up to 1,800 mm; Dahua specifies face recognition in about 0.2 seconds with 99.9% stated accuracy and throughput of roughly 20–60 persons/minute. The more economical ASGB5XXY-X uses a 1.2 mm SUS304 cabinet, 12 IR detector pairs, ≥5-million-cycle brushless drive, 600–1,100 mm passages, 20–60 persons/minute performance and IPX4 indoor/outdoor protection, while retaining an embedded controller and IC reader. The ASGB6XXX-X provides a slim 1.5 mm SUS304 cabinet, 12 IR pairs, ≥5-million-cycle drive and 600–1,000 mm passage, with approximately 20–40 persons/minute throughput, four configurable security levels, nine entry/exit mode combinations, people counting, anti-tailgating, anti-collision, mechanical/IR anti-pinch protection and sound/light alarms; this model is specified primarily for indoor deployment. For VEGA Digital IT Solutions LLC’s Dahua integration projects across Dubai and the UAE, the ASGB6XXY-X, ASGB6XXS-X, ASGB5XXY-X and ASGB6XXX-X can be delivered as complete pedestrian entrance-management solutions. Installation can begin with site survey, pedestrian-flow analysis and selection of the correct 600 mm standard, 900–1,200 mm accessible or wider customized lane, followed by floor preparation, precision anchoring, mains/24 VDC power provision, low-voltage and Cat6 cabling, infrared-detector alignment, controller installation and fire-alarm/emergency-release interfacing. VEGA Digital can integrate the gates with Dahua IC/RFID readers, facial-recognition terminals, fingerprint devices, QR visitor credentials, DSS access-management platforms, attendance systems and visitor-management software, while multi-lane entrances can combine standard and accessible passages. Final commissioning can include servo-motor calibration, barrier alignment, anti-tailgating and reverse-intrusion testing, IR anti-pinch verification, reader/face/QR authorization, fire-emergency opening, passage timing and operator training, providing a complete Dahua pedestrian access-control solution for offices, hotels, hospitals, universities, government facilities and premium commercial developments throughout Dubai and the wider UAE.
