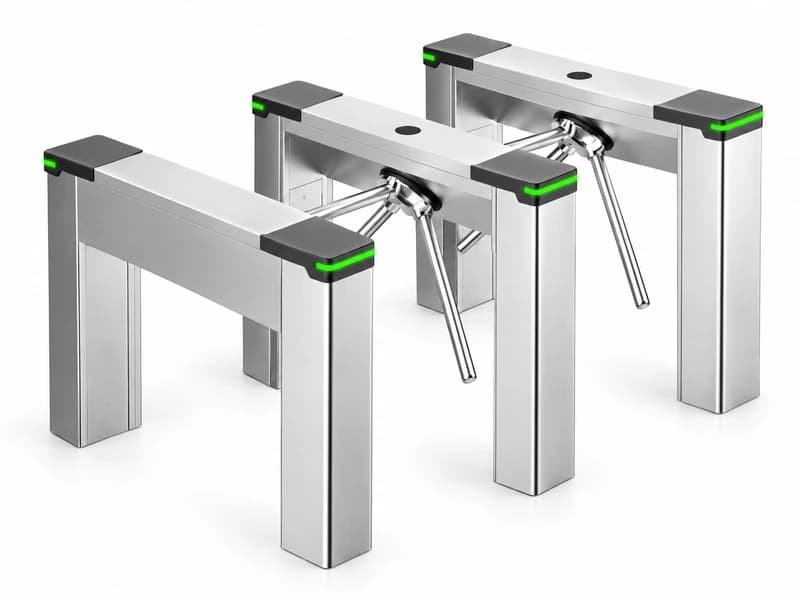

Dahua ASGG5XXT

The Dahua ASGG5XXT Tripod Turnstile is a professional pedestrian access-control solution designed for corporate offices, commercial buildings, schools, industrial facilities, gyms, transport environments and other controlled entrances where reliable one-person passage is required. It uses a robust 1.5 mm SUS304 stainless-steel cabinet and stainless-steel tripod arms, with a standard 600 mm passage width and throughput of approximately 20–40 persons per minute. Dahua specifies an MCBF of more than 3 million cycles, IPX4 protection, operating temperatures from about -25°C to +70°C, and indoor or outdoor deployment. Key functions include anti-collision, anti-tailgating, people counting, memory mode, sound-and-light prompts, alarm output and an adjustable 2–60 second unlocking period. The turnstile supports nine passage-mode combinations, including credential-controlled access, no-passage and free-passage modes. Its three-colour LED indication provides clear user guidance, and the mechanism can automatically unlock during power failure or remain open after receiving a fire-alarm signal to support emergency evacuation. A major advantage of the ASGG5XXT is that it incorporates the essential control architecture required to build a complete Dahua pedestrian entrance-management system. Dahua lists an integrated access controller and IC-card reader, while the system can be expanded with face-recognition terminals, fingerprint readers and QR-code modules for different authentication requirements. The turnstile supports optional remote control, configurable sound volume, parameter reset through the configuration application and output of alarm signals to connected security systems. Power consumption is comparatively low at approximately ≤10 W in standby and ≤40 W during operation, while the cabinet measures about 1200 × 200 × 980 mm and weighs approximately 37 kg net. This combination of compact stainless-steel construction, flexible authentication and configurable passage logic makes the ASGG5XXT suitable for integrating employee attendance, visitor access, staff entrances and controlled public passage within a single security architecture. For VEGA Digital IT Solutions LLC’s Dahua integration projects across Dubai and the UAE, the ASGG5XXT can be supplied and commissioned as part of a complete access-control solution. Installation can include site survey, pedestrian-flow assessment, floor preparation and precision anchoring, AC power provision, low-voltage and Cat6/network cabling, IC/RFID reader setup, facial-recognition or fingerprint terminal mounting, QR-reader integration and fire-alarm/emergency-release interfacing. VEGA Digital can integrate the turnstile with Dahua access controllers, attendance systems, visitor-management platforms and centralized security software, while configuring entry/exit direction, passage modes, memory mode, unlock timeout, LED indications and alarm events. Final commissioning can include tripod rotation and locking tests, credential verification, anti-tailgating checks, people-count validation, fire-alarm free-passage testing, alarm-output verification and end-user training, providing a complete Dahua ASGG5XXT pedestrian access-control solution for offices, schools, factories, gyms, transport facilities and commercial developments throughout Dubai and the wider UAE.
