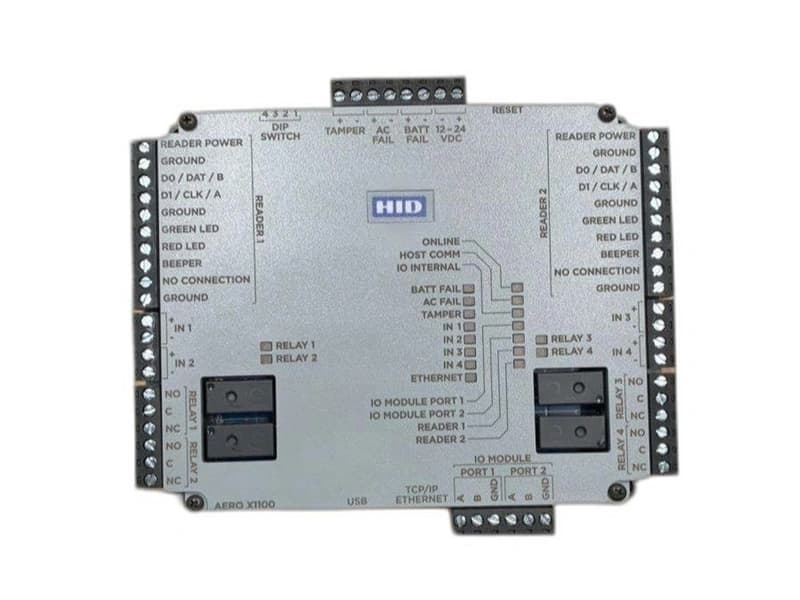

HID Aero® X1100
A powerful, scalable access control controller
Key Features
On-Board Capacity: Supports up to 2 local access points, 4 OSDP readers (or 2 Wiegand readers), 7 supervised inputs, and 4 relay outputs.
Scalability: Scales up to 64 access points, 64 readers, 615 inputs, and 388 outputs via expansion modules like the HID Aero X100, X200, and X300.
Advanced Security: Features end-to-end security including TLS 1.2, AES-256 encryption, and OSDP Secure Channel communications.
Open Architecture: Works with various software partner integrations without locking you into a single proprietary ecosystem.
Proven Platform: Built on reliable HID Mercury Technology trusted for over 25 years.
Backward Compatibility: Serves as a direct form-and-fit replacement for older VertX EVO V1000 and V2000 controllers
Overview
The HID Aero® X1100 Intelligent Controller is a powerful, scalable access control controller designed for enterprise, commercial, government and other high-security environments. It provides onboard I/O support for up to two access points, with support for two Wiegand readers or up to four OSDP readers. The controller includes seven supervised or unsupervised inputs for monitoring door status, request-to-exit devices, power supply, battery, tamper and other general-purpose inputs, along with four Form-C relay outputs for controlling door locks and auxiliary equipment. With a credential capacity of up to 250,000 credentials, the X1100 is well suited for both medium-sized installations and larger access control networks. The HID Aero X1100 is designed for expansion and advanced security. By connecting HID Aero X100, X200 and X300 expansion modules, the controller can scale to manage as many as 64 access points, 64 readers, 615 inputs and 388 outputs. It supports OSDP Secure Channel for encrypted, bidirectional reader communication, while communication between the intelligent controller and compatible I/O modules can be protected using AES-256 encryption. Additional security features include TLS 1.2 mutual authentication, cryptographic protection for sensitive keys and passwords, and configurable threat levels that can instantly change access permissions during lockdown or emergency situations. VEGA Digital IT Solutions LLC provides professional supply, installation and system integration of HID Aero® X1100 access control solutions in Dubai and across the UAE. VEGA Digital can design complete access control systems integrating the X1100 with HID Signo readers, OSDP or Wiegand readers, electromagnetic locks, electric strikes, door contacts, exit buttons, REX sensors, emergency break-glass devices, power supplies and compatible access control management software. Our integration services cover system design, controller configuration, reader programming, network connectivity, door logic configuration, testing, commissioning, expansion and migration of existing systems. With the scalable HID Aero architecture and VEGA Digital's system integration capabilities, customers can deploy a secure, flexible and future-ready access control infrastructure for corporate offices, data centres, warehouses, educational facilities, government environments and other security-sensitive buildings throughout Dubai.
