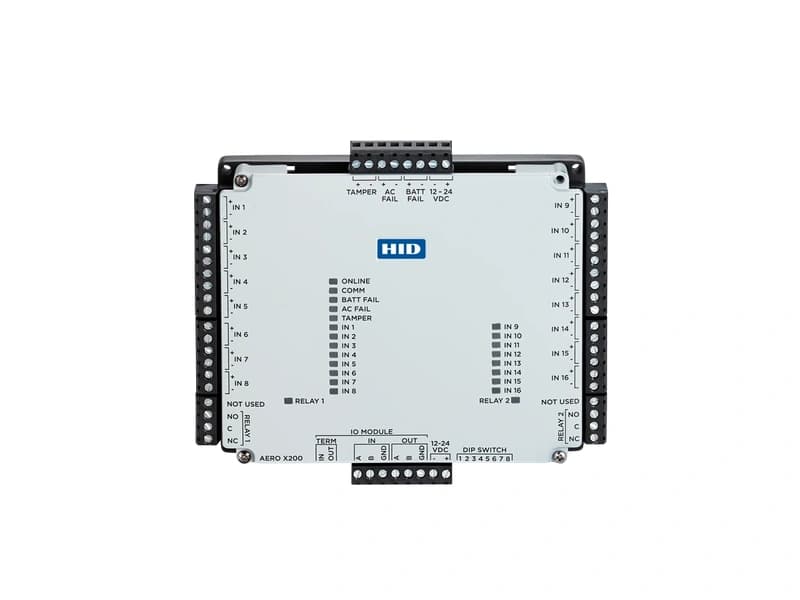

HID Aero® X200

The HID Aero® X200 Input Monitor Interface Module is a powerful expansion module designed for access control and security applications that require centralized monitoring of multiple field devices and alarm inputs. The X200 provides support for up to 16 general-purpose supervised or unsupervised inputs together with two Form-C relay outputs, allowing security systems to monitor equipment such as door contacts, emergency break-glass units, motion detectors, tamper switches, alarm contacts, cabinet sensors and other security devices. Supervised inputs support analog-to-digital conversion, helping the system differentiate between normal, alarm, open-circuit and tamper conditions when correctly configured. The X200 connects to the HID Aero X1100 Intelligent Controller, and multiple X200 modules can be deployed when additional monitoring capacity is required. The HID Aero X200 combines extensive input monitoring with advanced security features designed for modern enterprise access control environments. Communication between compatible HID Aero intelligent controllers and I/O modules can be protected using AES-256 encryption, while dedicated cryptographic hardware helps protect security keys and passwords against malicious attacks. When connected to the X1100, the X200 can also participate in custom rules processing, allowing input conditions to trigger specific security actions, alarms or operational responses. HID Aero additionally supports configurable threat levels, enabling access permissions and security behaviour to be changed rapidly during lockdowns, emergencies or other elevated-security situations. The X200 operates from 12–24 VDC, its relay contacts are rated at 2 A at 30 VDC resistive, and its compact approximately 164 × 140 × 26 mm format makes it practical for installation inside security control cabinets and access control enclosures. VEGA Digital IT Solutions LLC provides professional supply, installation and system integration of HID Aero® X200 solutions in Dubai and across the UAE. VEGA Digital can integrate the X200 with HID Aero X1100 controllers, HID Signo readers, door contacts, REX devices, emergency break-glass units, intrusion sensors, power-supply monitoring, battery-failure contacts, tamper switches, electromagnetic locks, electric strikes and compatible access-control management platforms. Our integration services can include system architecture design, controller and I/O module installation, supervised-input configuration, end-of-line resistor configuration, relay programming, encrypted communication setup, security-rule configuration, testing, commissioning, troubleshooting and future system expansion.
