Hikvision DS-K3B211LX

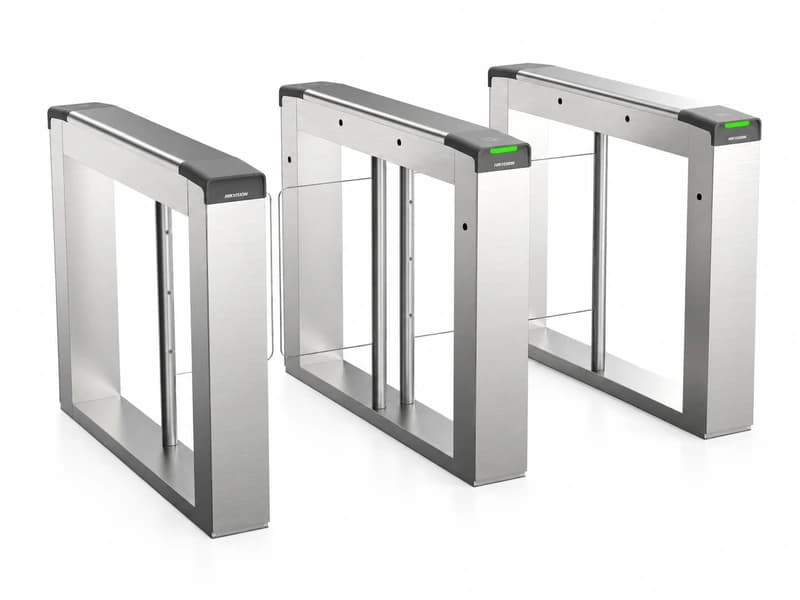

The Hikvision DS-K3B211LX Value Swing Barrier is a compact pedestrian entrance-control solution designed for corporate offices, commercial buildings, hotels, schools, hospitals and controlled reception areas. It uses a brushless motor rated for at least 3 million operating cycles, with four pairs of infrared detectors supporting permission validation, pedestrian detection and anti-tailgating functions. The barrier supports approximately 20–60 persons per minute, depending on authentication method and walking speed, with configurable lane widths from around 550 mm to 900 mm. Its barrier is made from 8 mm acrylic glass, while the pedestal uses SUS304 stainless steel. Other functions include LED direction indication, automatic cancellation of unused passage permission and a fire-alarm input that releases the wings for emergency free passage. The unit operates from 100–240 VAC, 50/60 Hz, works between approximately -20°C and +65°C, and consumes around 30 W in standby, 80 W while operating and up to 120 W peak. Importantly, the LX designation means the DS-K3B211LX is supplied without a built-in access-control board or card readers, allowing VEGA Digital to integrate the authentication system appropriate to each project. For projects requiring greater integration capability and wider passages, the related DS-K3B411BX provides six pairs of infrared detectors, a 550–1100 mm configurable passage, SUS304 stainless-steel construction, acrylic or stainless-steel barriers and IPX4 protection, making it suitable for both indoor and outdoor installations. It also uses a brushless motor rated for more than 3 million cycles and handles approximately 20–60 persons per minute. Unlike the 211LX, the 411BX includes a built-in access controller, with capacity for approximately 500,000 cards and 500,000 events, plus Ethernet, four RS-485 interfaces, two RS-232 ports, lock control, exit-button connections and alarm inputs/outputs. The DS-K3B411BLX uses essentially the same physical barrier platform—six IR detector pairs, 550–1100 mm lane, brushless motor, >3-million-cycle rating, IPX4 protection and 20–60-person/minute flow—but does not include the built-in access controller. This makes the BLX version preferable when the project already uses an external Hikvision controller or another centralized access-control architecture, while the BX version is ideal where a more self-contained gate/controller solution is required. As an organized Hikvision partner and system integrator across Dubai and the UAE, VEGA Digital IT Solutions LLC can deploy the DS-K3B211LX, DS-K3B411BX and DS-K3B411BLX as complete pedestrian entrance-management systems. Installation can begin with a site survey and pedestrian-flow assessment, selection of the appropriate 550, 650, 750, 900 or up-to-1100 mm lane width, followed by finished-floor preparation, precise mechanical anchoring, 100–240 VAC power provision, Cat6/network cabling, RS-485/RS-232 or dry-contact wiring, infrared-detector calibration and fire-alarm integration. VEGA Digital can integrate these barriers with Hikvision RFID/card readers, facial-recognition terminals, fingerprint readers, QR-code credentials, visitor-management systems, employee attendance platforms and centralized access-control software. Final commissioning can include motor and wing alignment, anti-tailgating tests, passage-timing configuration, LED guidance, credential authorization, fire-alarm free-passage verification, multi-lane synchronization and operator training, providing a complete Hikvision swing-barrier access-control solution for offices, hotels, hospitals, schools, commercial towers and premium developments throughout Dubai and the wider UAE.
