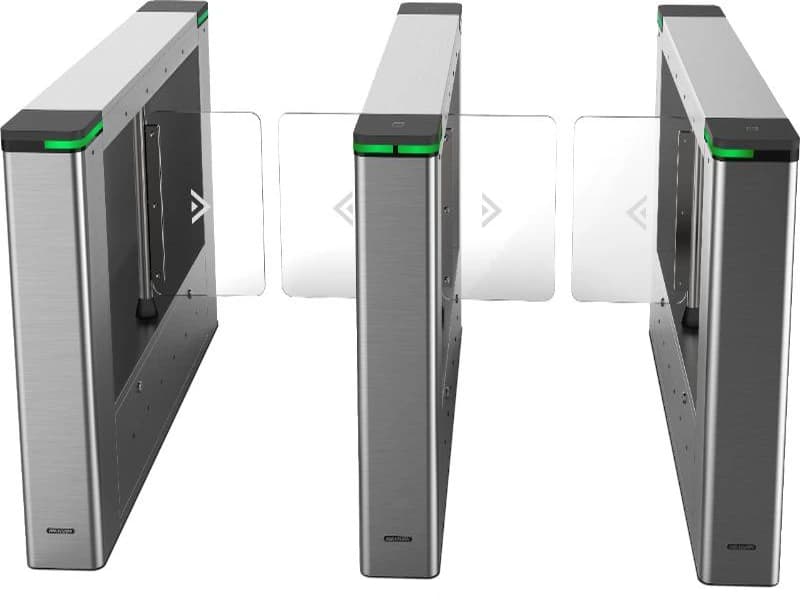

Hikvision DS-K3B501SX

The Hikvision DS-K3B501SX Pro Swing Barrier is a professional pedestrian entrance-control solution developed for corporate offices, commercial towers, hotels, government buildings, transport facilities and other controlled entrances. It uses a servo motor rated for more than 6 million operating cycles together with 12 pairs of infrared detectors for credential-validation support, pedestrian monitoring and anti-tailgating detection. The barrier supports approximately 20–60 persons per minute and configurable passage widths from around 550 mm to 1100 mm, allowing both standard pedestrian lanes and wider accessible passages. Construction is based on SUS304 stainless steel, with acrylic or stainless-steel barrier options, while IP54 protection supports indoor and outdoor applications. Additional functions include LED passage-direction indication, obstruction alarms, self-detection and self-diagnostics, configurable passage-validity timing, automatic opening during fire alarms and free passage when power is removed. Its integrated controller supports approximately 60,000 cards and 180,000 events, with Ethernet, RS-485, RS-232 and multiple I/O interfaces for integration with card, QR and biometric access systems. For higher-performance projects, Hikvision provides several advanced alternatives. The DS-K6B530TX is a Prime Pass smart barrier using a servo motor rated for ≥12 million cycles, 14 dToF sensors, approximately 30–60 persons/minute throughput and 650–1100 mm lane options, with a built-in facial-recognition camera module and mobile/PC Web configuration. The DS-K3B530X/Modular retains the Pro-series architecture with a ≥12-million-cycle servo motor, 14 IR detector pairs, 30–60 persons/minute throughput and approximately 550–1100 mm passages; Modular left, middle and right versions allow the reader and peripheral configuration to be selected according to each lane. The newer DS-K6B530TX/Modular adds true plug-and-play peripheral architecture, optional top-mounted face-recognition module, NFC-assisted AP configuration, cross-device anti-passback, fire linkage and a supercapacitor that can automatically open the barrier during power loss. For premium architectural installations, the DS-K6B630TX uses an aluminium-alloy enclosure, 6.95-inch IPS display, built-in 2 MP face-recognition camera, 12 dToF sensors, ≥11-million-cycle servo motor and roughly 650–1100 mm lanes; optional palm/palm-vein and QR authentication are supported.The DS-K6B653X Prime Pass also uses an aluminium-alloy body with a 6.95-inch display, 12 dToF sensors, ≥11-million-cycle servo motor, 550–1100 mm passages and 30–60 persons/minute throughput, while supporting optional palm-print/palm-vein and QR authentication, multi-factor authentication, Hik-Connect and large event/card capacities. For VEGA Digital IT Solutions LLC’s Hikvision integration projects across the Middle East, these barriers can be deployed as complete pedestrian entrance-management systems beginning with site survey, pedestrian-flow analysis, accessible-lane planning and selection of the appropriate standard, wide, smart or modular configuration. Installation can include finished-floor preparation and precision anchoring, 100–240 VAC power distribution, Cat6/network cabling, RS-485/RS-232 and I/O wiring, card/QR/face/palm reader integration, IR or dToF sensor commissioning, multi-lane synchronization and fire-alarm/emergency-release interfacing. VEGA Digital can integrate the gates with Hikvision M1/EM/Desfire card readers, facial-recognition modules, QR readers, palm and palm-vein authentication, visitor-management systems, attendance solutions, Hik-Connect and HikCentral Professional, depending on the selected model and peripherals. Final commissioning can include servo calibration, barrier alignment, IR/dToF safety testing, anti-tailgating and anti-passback verification, credential enrolment, passage timing, Web/mobile management setup, supercapacitor emergency-opening tests and operator training, delivering a complete Hikvision access-control solution for offices, hotels, airports, government facilities, hospitals and premium commercial developments throughout Dubai, the UAE and the wider Middle East. Hikvision’s current portfolio positions the K6B530TX, K6B630TX and related Prime Pass models as higher-end smart turnstile platforms, while the K3B530X family remains a flexible Pro-series option for integrated or modular access-control projects.
