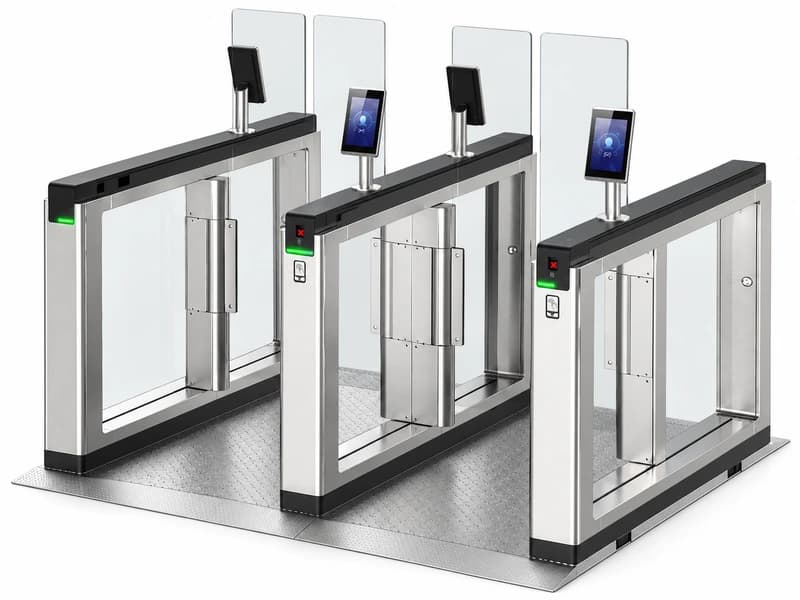

Hikvision DS-K3B802X
Ultra Swing Barriers
Key Features
Built-in card reader and access controller.
The barrier will be locked or stop working when people are nipped.
Self-detection, Self-diagnostics, and automatic alarm.
Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, and overstay.
The barrier's material is high-strength tampered glass, sticked with film, which will not cause injury when the glass is broken.
Overview
The Hikvision DS-K3B802X Series Swing Barrier is a high-performance pedestrian access gate designed for premium offices, corporate headquarters, hotels, government buildings, airports and other high-security indoor entrances. It uses a servo motor with an MCBF of more than 6 million cycles, 24 pairs of infrared detectors, and supports approximately 30–60 persons per minute, depending on the authentication method and pedestrian flow. Standard lane widths range from 650 mm to 900 mm, while the gate body is manufactured from 2 mm SUS304 stainless steel with high-strength tempered-glass barriers. Security functions include detection and audible/visual alarms for unauthorized intrusion, tailgating, reverse passage, climbing and passage timeout, together with anti-pinch protection that stops or locks the barrier when an obstruction is detected. The system also provides automatic opening when a fire alarm is triggered, self-detection, self-diagnostics and automatic fault alarms. Connectivity includes Ethernet, lock-control outputs, alarm inputs/outputs and multiple RS-485 and RS-232 interfaces, with support for access through compatible IC/ID cards, QR credentials and other Hikvision authentication devices. Power input is 100–240 VAC, 50/60 Hz, and Hikvision specifies indoor operation from approximately -10°C to +55°C. The DS-K3B802X is available as DS-K3B802X-L, DS-K3B802X-M and DS-K3B802X-R modules, allowing left, middle and right pedestals to be combined into single- or multi-lane installations. Hikvision also provides dedicated DS-K3B802X-BASE components for 650 mm, 750 mm and 900 mm lane configurations, with cable-routing openings and SUS304/aluminium construction for cleaner installation and easier multi-lane deployment. A closely related model is the DS-K3B802BX, which retains the 24-pair infrared detection system, 30–60 persons/minute throughput, 650–900 mm lane widths, SUS304 construction and >6-million-cycle servo motor, while incorporating an access controller and supporting very large credential/event capacities on the documented configuration. For newer or wider-lane projects, the DS-K3B801BX expands the usable lane to approximately 550–1,100 mm, increases servo-motor durability to at least 10 million cycles, incorporates 24 infrared pairs, Ethernet, RS-485, RS-232, Wiegand and fire-alarm input, and supports browser configuration—making it suitable where accessible or wider pedestrian lanes are required.For VEGA Digital IT Solutions LLC’s Hikvision integration projects across the UAE, the DS-K3B802X can be deployed as part of a complete pedestrian access-control solution including site survey, entrance and lane planning, floor/base preparation, Cat6 structured cabling, electrical supply, network configuration, gate alignment and integration with Hikvision access controllers and authentication terminals. VEGA Digital can configure card readers, facial-recognition terminals, QR-code readers, visitor-management systems, exit controls and fire-alarm interfaces, while multi-lane projects can use the appropriate L/M/R barrier modules and 650/750/900 mm bases to create standard and accessible passage layouts. Final commissioning can include IR-sensor alignment, anti-tailgating and reverse-passage testing, barrier speed adjustment, anti-pinch verification, fire-alarm emergency opening, credential authorization, network communication and operator training. This enables VEGA Digital to deliver an integrated Hikvision swing-gate, access-control and visitor-management solution for corporate offices, commercial towers, hotels, government facilities and premium developments throughout Dubai and the wider UAE. Hikvision positions speed gates and turnstiles as part of its broader access-control portfolio for integrated pedestrian management.
