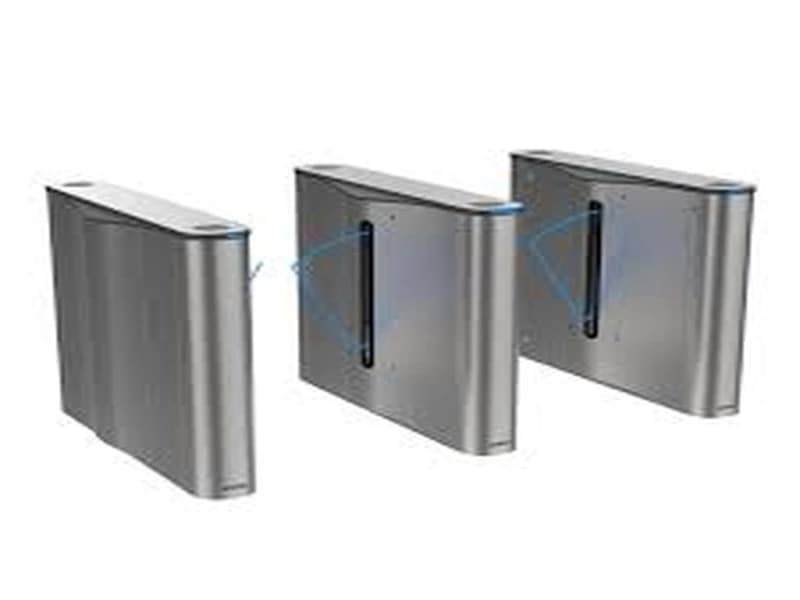

Hikvision DS-K3Y411BX

The Hikvision DS-K3Y411BX Value Flap Barrier is a professional pedestrian entrance-control system designed for corporate offices, commercial buildings, hotels, gyms, transport facilities, residential developments and other high-traffic entrances. It uses a brushless motor rated for at least 3 million operating cycles, together with six pairs of infrared detectors for permission validation, pedestrian monitoring and anti-tailgating detection. Hikvision specifies a standard 550 mm passage, throughput of approximately 20–60 persons per minute, 12 mm acrylic barrier wings, and a 1.2 mm SUS304 stainless-steel pedestal. The unit includes an integrated access controller supporting approximately 500,000 cards and 500,000 events, with M1 or EM card authentication and interfaces including Ethernet, RS-485, RS-232, Wiegand, lock control, exit buttons, alarm outputs and fire-alarm input. Additional functions include self-detection and diagnostics, automatic cancellation of unused passage permission, PC-Web configuration and automatic barrier opening when a fire alarm is triggered. Power is 100–240 VAC, 50/60 Hz, with approximately 40 W standby, 80 W operating and 130 W peak consumption, and the specified temperature range is around -20°C to +70°C. The related DS-K3Y220LX and DS-K3Y220X are more economical Value Series flap barriers using a brushless motor rated for at least 3 million cycles, four pairs of infrared detectors, a 550 mm lane, acrylic barriers, SUS304 stainless-steel pedestals and approximately 20–60 persons/minute throughput. The DS-K3Y220LX is intended for projects where the access-control architecture is provided separately: the latest Hikvision specification lists the built-in access controller as optional, making it suitable for connection to an external controller, QR system, face terminal or other authentication platform. It operates from 100–240 VAC, works from approximately -30°C to +65°C, and can be used indoors or outdoors. The DS-K3Y220X, by comparison, is supplied with the access controller and card readers integrated, supporting about 200,000 cards and 250,000 events, M1 or EM cards, Wiegand interfaces, lock control, alarm output and exit-button connections. It retains the same 550 mm lane, four IR detector pairs, brushless drive, 20–60-person/minute performance and fire-alarm free-passage function. Hikvision also offers a dedicated DS-K3Y220X-BASE for the 220LX/220X family, with single-lane and multi-lane extension versions for installations where a prepared mounting base is preferred. As an organized Hikvision partner and system integrator across Dubai, VEGA Digital IT Solutions LLC can implement the DS-K3Y411BX, DS-K3Y220LX and DS-K3Y220X as complete pedestrian entrance-management solutions. Installation can begin with site survey and pedestrian-flow assessment, followed by lane positioning, finished-floor or fixed-base preparation, mechanical anchoring, 100–240 VAC power, Cat6/network cabling, RS-485/RS-232/Wiegand wiring, reader mounting, infrared-detector alignment and fire-alarm/emergency-release integration. VEGA Digital can integrate these flap barriers with Hikvision M1/EM card readers, facial-recognition terminals, QR-code readers, fingerprint devices, visitor-management systems, attendance platforms and centralized access-control software. Final commissioning can include motor and flap alignment, infrared-sensor calibration, anti-tailgating testing, credential authorization, passage-validity timing, entry/exit direction setup, event-record verification and emergency fire-alarm opening tests, delivering a complete Hikvision pedestrian access-control solution for offices, hotels, gyms, residential developments, transport facilities and commercial projects throughout Dubai and the wider UAE. Hikvision’s own documentation identifies these models for integrated card/QR/access-control operation and provides dedicated mounting-base options for the K3Y220 family.
