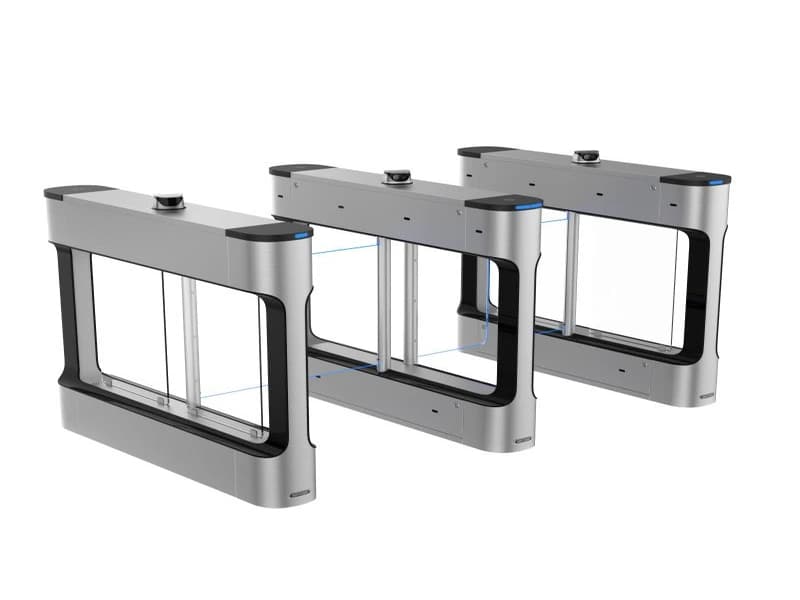

Hikvision DS-K6B411TX

The Hikvision DS-K6B411TX Value Smart Swing Barrier is a next-generation pedestrian access-control gate designed for corporate offices, commercial towers, hotels, hospitals, universities, government facilities and other high-traffic entrances. It uses a brushless motor, is rated for approximately 5 million operating cycles, and incorporates six dToF safety sensors for more accurate pedestrian detection, anti-tailgating control and safer barrier operation. The system supports approximately 20–60 persons per minute and configurable lane widths from around 550 mm to 1100 mm, making it suitable for standard pedestrian lanes as well as wider accessible passages. Its cabinet is manufactured from 1.2 mm SUS304 stainless steel with 8 mm acrylic barrier wings, while IPX4 protection supports indoor or suitable outdoor deployment. A major advantage is the integrated smart-access architecture: DS-K6B411TX can include a 2 MP built-in face-recognition camera, with face recognition in less than 200 ms, stated accuracy above 99%, capacities of approximately 100,000 faces, 200,000 cards and 100,000 events, multi-factor authentication, anti-spoofing, Hik-Connect support and mobile/PC web management. Fire-alarm linkage automatically releases the barrier for evacuation, while a supplied supercapacitor can support automatic opening during power failure. The related Hikvision DS-K6B221TMX is a more compact smart swing-barrier platform with integrated authentication capabilities. It supports built-in face recognition, M1 card authentication, multi-factor verification, face anti-spoofing, Hik-Connect, mobile-web and PC-web configuration, with a published facial-recognition speed below 200 ms and stated accuracy above 99%. The gate supports a lane width of approximately 550–950 mm, uses an 8 mm acrylic barrier with 1.5 mm stainless-steel pipe reinforcement, and a 1.2 mm SUS304 pedestal, with IPX4 protection and operation from approximately -15°C to +65°C.The DS-K6B411TX/Modular builds on the 411TX platform but uses a modular plug-and-play architecture, allowing peripherals and authentication modules to be selected separately according to the project. It retains the brushless motor, ≥5-million-cycle rating, six dToF sensors, 550–1100 mm lane width, 8 mm acrylic barriers, 1.2 mm SUS304 construction, IPX4 protection, built-in face-recognition capability, mobile/PC web management, Hik-Connect, anti-passback, multi-factor authentication and fire-alarm linkage. The modular design is particularly useful when VEGA Digital needs to configure different lanes with face recognition, card readers or other peripherals while maintaining the same gate platform.For VEGA Digital IT Solutions LLC’s Hikvision integration projects across Dubai and the UAE, the DS-K6B411TX, DS-K6B221TMX and DS-K6B411TX/Modular can be deployed as complete pedestrian entrance-management systems. Installation can begin with site survey, pedestrian-flow analysis and selection of the required standard or accessible lane width, followed by floor preparation, precise mechanical anchoring, 100–240 VAC power provision, Cat6/network cabling, RS-485 and control wiring, dToF/safety-sensor commissioning, face/card module configuration and fire-alarm integration. VEGA Digital can integrate the barriers with Hikvision face-recognition modules, M1/EM card readers, optional QR authentication, Hik-Connect, HikCentral Professional, attendance systems and visitor-management platforms, while multi-lane systems can combine standard, wide and modularly configured passages. Final commissioning can include brushless-motor and barrier alignment, sensor calibration, anti-tailgating and anti-passback testing, credential enrolment, face-recognition verification, mobile/web-management configuration, emergency-release testing and end-user training, delivering a complete Hikvision Prime Pass pedestrian access-control solution for offices, hotels, hospitals, universities and premium commercial developments throughout Dubai and the wider UAE.
