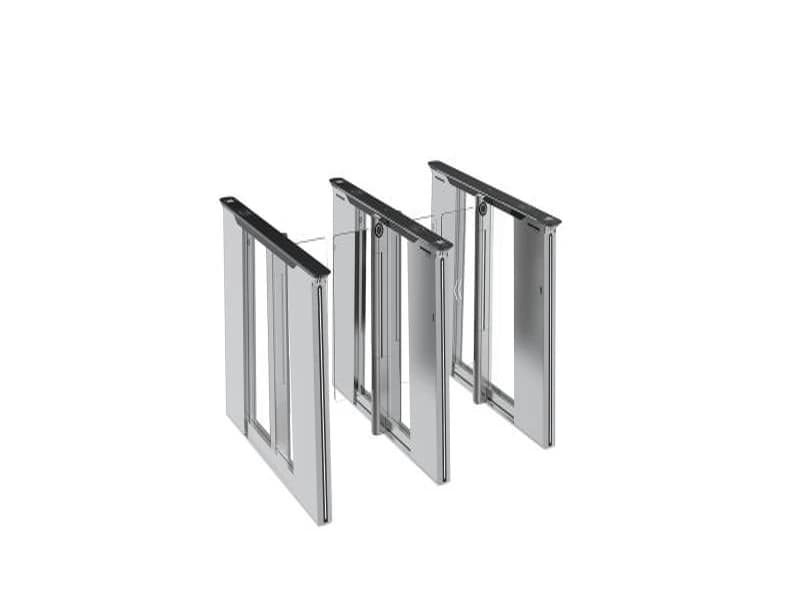

Hikvision DS-K6B961TX

The Hikvision DS-K6B961TX Prime Pass Swing Barrier is a premium intelligent pedestrian entrance-control system designed for corporate headquarters, commercial towers, hotels, airports, government facilities, hospitals and other high-traffic premium entrances. It combines a 6.95-inch 600 × 1024 IPS display, built-in 2 MP dual-lens facial-recognition module, integrated access controller and 24 dToF sensors for detailed pedestrian detection, safety monitoring and anti-tailgating control. Hikvision uses a direct-drive servo motor rated for at least 30 million operating cycles, providing quieter operation and a significantly extended mechanical life. Face recognition is specified at under 200 ms with greater than 99% stated accuracy, with capacity for approximately 100,000 faces, 500,000 cards and 1,000,000 events. The system supports multi-factor authentication, face anti-spoofing, PC and mobile Web management, Hik-Connect, RS-485, RS-232, Wiegand, USB and fire-alarm input. Passage width is configurable from approximately 550 to 1,100 mm, with 650, 750, 900 and 1,100 mm project configurations available; construction uses 10 mm acrylic barriers and 2.0 mm SUS304 stainless-steel pedestals, while colourful lane, authentication and barrier lighting improves user guidance.The related Hikvision DS-K6B961X belongs to the same high-end Prime Pass/Ultra swing-barrier family and retains the key architectural features of a 6.95-inch display, integrated facial-recognition capability, 24 dToF sensors, built-in access controller, mobile/PC Web management, NFC-assisted AP configuration and automatic fire-alarm opening. Published Hikvision-family comparison material differentiates the two mainly at the drive level: DS-K6B961TX uses Hikvision’s newer direct-drive servo motor and carries the higher ≥30-million-cycle specification, whereas the DS-K6B961X uses a conventional servo-motor architecture; available DS-K6B961X configurations cover different left, middle and right pedestals and barrier-width combinations, so the exact suffix should be selected according to lane width and layout. DS-K6B961X also supports full-height/high barrier-wing configurations for projects where stronger physical separation is needed. Both platforms are therefore suitable for premium entrance designs, but the 961TX is the preferred choice when maximum lifecycle, lower mechanical noise and the latest direct-drive architecture are priorities, while the 961X remains a strong high-security servo-driven option.For VEGA Digital IT Solutions LLC’s Hikvision projects across Dubai and the UAE, the DS-K6B961TX and DS-K6B961X can be implemented as complete multi-lane pedestrian access-control systems. Installation can begin with a detailed site survey, pedestrian-flow and accessibility study, selection of the required 650/750/900/1,100 mm lanes, and preparation of the finished floor for the left, centre and right pedestals. Hikvision’s installation guidance calls for accurate lane centre-line marking, cable trenches, separation of mains and low-voltage routes and secure pedestal anchoring; each lane typically requires network and power/control cabling before the units are fixed and aligned. VEGA Digital can integrate the barriers with Hikvision face recognition, EM/M1/Desfire cards, QR credentials, Hik-Connect, HikCentral Professional, visitor-management and attendance systems, while configuring RS-485/Wiegand interfaces, multi-factor authentication, anti-passback, event logging and fire-alarm evacuation opening. Final commissioning can include dToF sensor calibration, direct-drive/servo alignment, lane lighting, face and card authorization, barrier timing, supercapacitor emergency opening, fire-linkage testing and operator training, delivering a complete Hikvision Prime Pass entrance-management solution for premium offices, hotels, hospitals, government facilities and major commercial developments throughout Dubai and the wider UAE.
