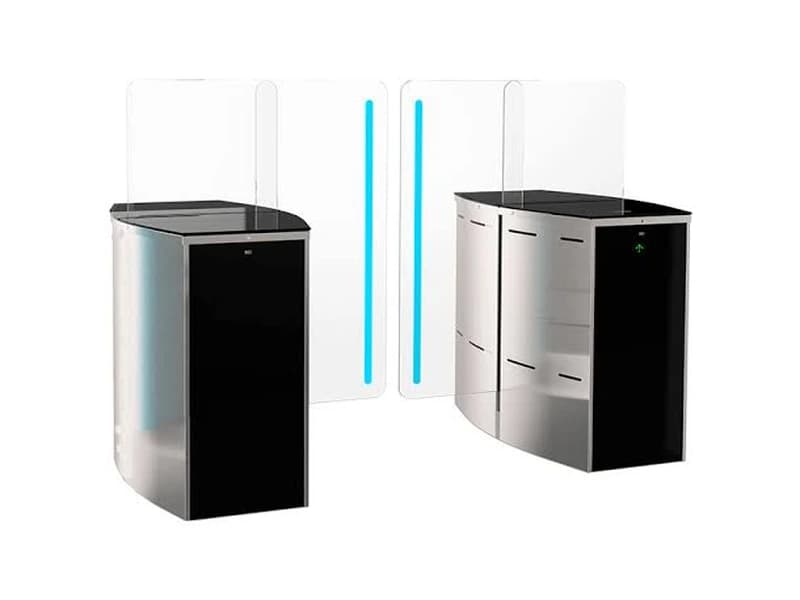

TiSO JETPAN

The TiSO Jetpan is a premium high-glass speed gate designed for corporate offices, commercial towers, banks, airports, government facilities, universities and other high-security entrances where pedestrian flow, anti-tailgating control and architectural appearance are all important. Jetpan uses TiSO’s BMDrive® servo-driven BLDC mechanism, combined with high-precision infrared safety sensors and artificial-intelligence-based passage detection to identify tailgating, wrong-way movement and unauthorized passage. Digital control of leaf force and speed helps protect users from impact, while the sensor system can recognize people carrying luggage and can also support free-exit operation without identification. The Jetpan 500 provides a 500 mm passage, approximately 0.7-second opening/closing, around 30 persons/minute controlled throughput and up to 60 persons/minute in free-flow mode, with an MCBF of approximately 10 million cycles. It uses the DeadLock® locking system, supports bidirectional operation, and automatically opens its high retractable glass leaves in fire-alarm mode. Standard construction is brushed AISI 304 stainless steel, with AISI 316, polished stainless steel and RAL powder-coated options available. For wider and accessible entrances, the related TiSO Jetpan 900 provides a 900 mm passage width, making it suitable for people with reduced mobility, wheelchair users and passengers carrying larger luggage. Jetpan 900 uses high retractable wings and intelligent optical sensing to confirm that an authorized person has actually passed before generating the corresponding attendance or access event. TiSO specifies approximately 18 persons/minute controlled throughput, up to 60 persons/minute free-flow throughput and around 2.2-second opening/closing, with an MCBF of approximately 5 million cycles. The controller incorporates an OLED display, onboard configuration buttons, self-diagnostics, error logging and warning records, while integrated DotLights®, RFIDLights®, EdgeLight® and optional FloorLights® provide clear visual guidance. The gate operates from 100–240 VAC, 50/60 Hz or 12 VDC, is fail-safe during power loss so that the leaves can be opened manually, and supports integration with virtually any third-party access-control system. In practical project selection, Jetpan 500 is ideal for compact, high-throughput standard lanes, while Jetpan 900 is better suited for wide accessible lanes and users carrying bulky items.For VEGA Digital IT Solutions LLC’s TiSO integration projects across Dubai and the UAE, Jetpan can be implemented as part of a complete pedestrian entrance-management solution beginning with site survey, traffic-flow analysis, lane-width selection and multi-lane layout planning. Installation can include floor preparation and precision anchoring, 100–240 VAC power supply, low-voltage and Cat6/network cabling, RFID or biometric reader mounting, access-controller integration, fire-alarm/emergency-release wiring and synchronization of multiple Jetpan lanes. VEGA Digital can integrate the gates with RFID/smart-card readers, facial-recognition terminals, fingerprint readers, QR-code credentials, employee attendance systems, visitor-management platforms and centralized access-control software, followed by commissioning of BMDrive®, safety sensors, anti-tailgating and wrong-way logic, opening/closing speed, LED indications, access permissions and emergency fail-safe operation. This provides a complete TiSO Jetpan high-security speed-gate solution for offices, hotels, airports, commercial towers, government facilities and premium developments throughout Dubai and the wider UAE. TiSO designs and manufactures entrance-control products used internationally and maintains a Middle East presence supporting regional projects.
