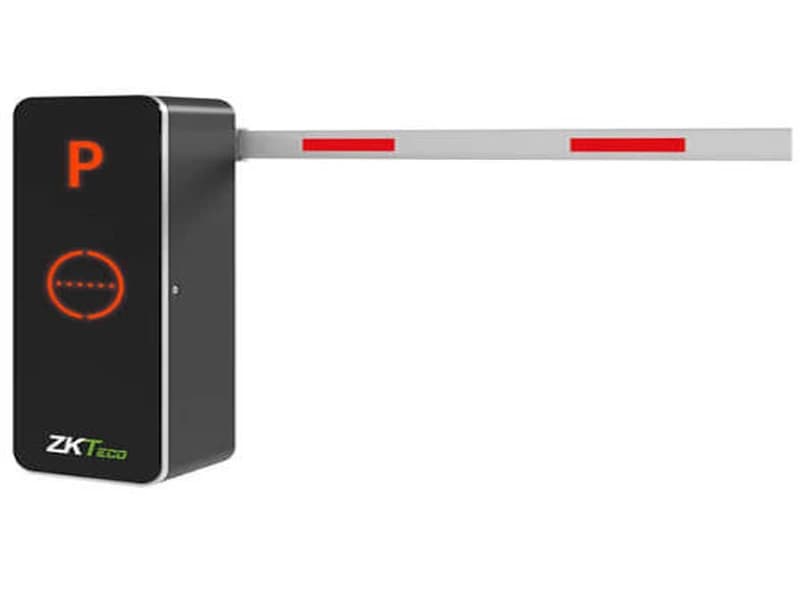

ZKTeco BGM1000 SERIES

The ZKTeco BGM1000 Series is a modern automatic vehicle barrier designed for residential communities, commercial buildings, offices, schools, hospitals, factories and parking facilities where reliable vehicle access control is required. It uses a 24 VDC brushless motor, ZKTeco’s interactive LED chassis design, a programmable control panel and an SCM421-material gear transmission system to deliver stable, low-maintenance operation. ZKTeco specifies a 3 million-cycle motor MCBF, approximately 120 W output power, remote-control operation up to around 30 m, and an operating temperature range from about -35°C to +70°C. The standard barrier supports a 3 m straight boom with approximately 1.5-second operation, while the cabinet measures around 350 × 280 × 1000 mm and weighs about 45 kg. These characteristics make the BGM1000 a practical solution for normal residential and commercial parking entrances where compact size, fast operation and straightforward integration are priorities. For projects requiring higher traffic capacity or more advanced performance, ZKTeco offers the ProBG8000 Series and ProBG3000 Series. The ProBG8000 is a premium servo-driven barrier using a 24 V DC brushless servo motor and planetary reduction system, with an MCBF of up to 10 million cycles, 100% duty cycle, IP54 protection and adjustable opening/closing speed from approximately 0.3 to 6 seconds. Models include ProBG8030L/R with a boom up to 3 m and ProBG8045L/R up to 4.5 m, while its 7-colour RGB LED strip can visually indicate closed, normal-use and standby status. It also supports loop, infrared and radar detector control, anti-smash logic, traffic-light control, optional Ethernet/Bluetooth, fire-alarm dry contact and multiple anti-collision functions. The ProBG3000 Series uses a high-performance servo motor and is available as ProBG3000 straight boom, ProBG3100 90° folding boom and ProBG3200 fence boom. Boom lengths range from 3 m up to 6 m depending on model, with IP54 protection, approximately 100 W consumption, 24 VDC internal operation from a 100–240 VAC supply and an operating range from around -40°C to +75°C. As a ZKTeco system integrator serving the UAE, VEGA Digital IT Solutions LLC can provide complete implementation of the BGM1000, ProBG8000 and ProBG3000 Series, starting with vehicle-flow analysis, boom-length selection and foundation planning. Installation can include reinforced concrete foundation preparation, cabinet anchoring, 110/220 VAC power supply, low-voltage control wiring, boom assembly, induction-loop detectors, photocells, radar sensors, traffic lights and safety devices, together with access-controller integration. VEGA Digital can further integrate these barriers with ANPR/LPR cameras, UHF/RFID vehicle readers, QR visitor systems, intercoms, parking-management software and centralized access-control platforms. Final commissioning can include opening/closing-speed adjustment, loop and radar calibration, anti-smash and auto-rebound testing, traffic-light logic, fire-alarm release, remote-control programming and operator training, delivering a complete ZKTeco vehicle-access solution for residential communities, commercial car parks, schools, hospitals, factories and high-traffic developments throughout Dubai and the wider UAE.
