HIKVISION DS-K1A802AEF

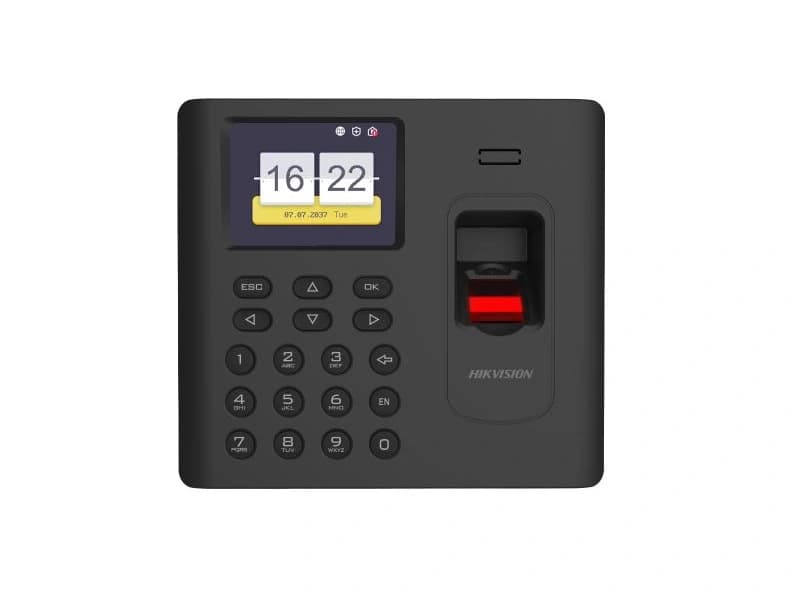

The HIKVISION DS-K1A802AEF K1A802 Pro Series Fingerprint Time Attendance Terminal is a compact professional attendance and employee-identification terminal designed for offices, retail environments, warehouses, schools and commercial facilities. It combines an optical fingerprint module, 125 kHz EM proximity-card authentication and PIN-based verification, with a 2.4-inch LCD display for time, date, attendance status and user information. The terminal supports up to approximately 3,000 users, 3,000 fingerprint templates and 100,000 attendance/event records, with fingerprint verification completed in less than one second. It supports TCP/IP and Wi-Fi communication, standalone employee enrollment, USB attendance-report export, automatic report generation and configurable attendance schedules including up to 32 normal shifts, 32 man-hour shifts and 32 holiday schedules. It also supports ISAPI and ISUP 5.0 integration, making it suitable for centralized attendance-management deployments as well as independent operation. The wider DS-K1A802 family provides several models for different credential and backup-power requirements. DS-K1A802AEF-B combines fingerprint, EM-card and PIN authentication with built-in backup lithium-battery support, allowing the terminal to continue functioning temporarily if the main power supply fails. The earlier DS-K1A802F-B is primarily a fingerprint-based model with battery backup, DS-K1A802EF-B combines fingerprint with 125 kHz EM cards, and DS-K1A802MF-B combines fingerprint with 13.56 MHz M1/MIFARE cards; all three support approximately 3,000 fingerprints and 100,000 event records. Hikvision also officially lists DS-K1A802AF-B, a newer A-series fingerprint model supporting 10/100 Mbps TCP/IP, Wi-Fi, 3,000 fingerprints, 100,000 events and backup battery operation. Hikvision’s documentation distinguishes the A-series models—AF, AEF and AMF, with or without “-B”—from the earlier F/EF/MF family, so the exact card technology and battery requirement should be confirmed when selecting the model for a project. VEGA Digital IT Solutions LLC provides the Hikvision DS-K1A802AEF, DS-K1A802AEF-B, DS-K1A802AF-B, DS-K1A802F-B, DS-K1A802EF-B, DS-K1A802MF-B and related Hikvision fingerprint attendance solutions as a professional vendor, supplier and system integrator across Dubai and the UAE. VEGA Digital can deliver complete system installation including terminal positioning, power and network cabling, TCP/IP and Wi-Fi configuration, fingerprint and card enrollment, employee database setup, shift and holiday configuration, attendance-rule programming, USB/report configuration and integration with Hikvision attendance-management platforms. Services also include site surveys, product and card-technology selection, backup-power planning, testing, commissioning, user training, troubleshooting and future system expansion. This enables organizations to deploy a reliable, scalable and centrally managed fingerprint-based time-attendance solution for corporate offices, warehouses, shops, educational facilities and commercial environments throughout the UAE. Hikvision classifies fingerprint terminals with 3,000+ fingerprint capacity as Pro Series, placing the K1A802 platform within its professional attendance portfolio.
