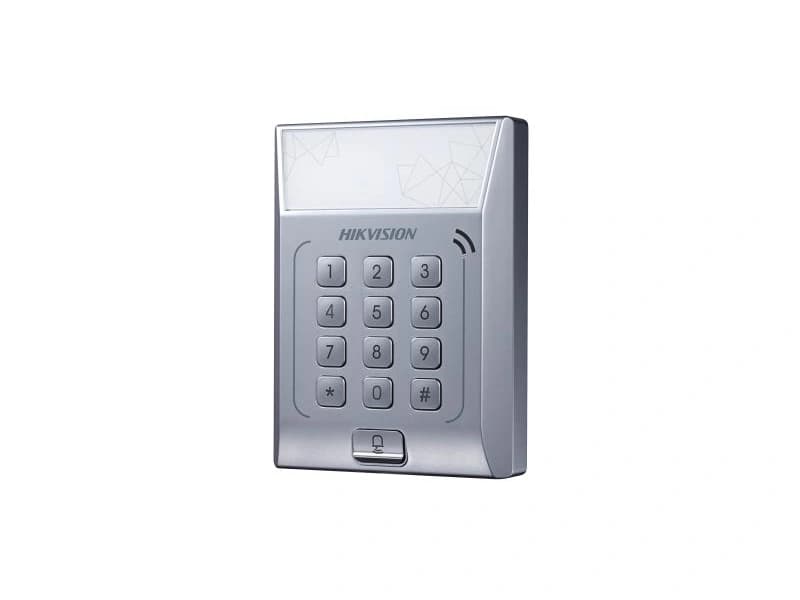

HIKVISION DS-K1T801

The HIKVISION DS-K1T801 Value Series Card Terminal is a compact standalone access-control terminal designed for offices, retail stores, warehouses, schools, residential properties and other small-to-medium security applications. The series uses a 32-bit processor and supports up to 3,000 card credentials, with authentication by card or card + password/PIN. It can operate independently without a dedicated controller, supports an exit button, and permanently retains stored data even after power loss. The DS-K1T801E version supports 125 kHz EM/ID proximity cards, while DS-K1T801M supports 13.56 MHz MIFARE/M1 smart cards. This simple architecture makes the K1T801 family suitable for cost-effective single-door installations where users need reliable card-and-PIN access without a more complex centralized controller. For projects requiring network connectivity and event storage, the closely related DS-K1T802 Series offers a more capable alternative. DS-K1T802E supports EM cards, while DS-K1T802M supports MIFARE/M1 cards. Both models store approximately 3,000 authorized cards and 10,000 event records and provide TCP/IP communication, allowing centralized management over the network. They include a 128 × 64 STN display, 13-key keypad, exit-button input, door-sensor input, electric-lock output and doorbell output, and operate from 12 VDC. This gives system designers a clear choice: K1T801E/M for straightforward standalone card/PIN access, or K1T802E/M when Ethernet communication, event logging and additional door interfaces are required. VEGA Digital IT Solutions LLC provides the Hikvision DS-K1T801E, DS-K1T801M, DS-K1T802E and DS-K1T802M as a professional distributor, supplier and system integrator across Dubai, the UAE and the wider Middle East. VEGA Digital can integrate these terminals with electromagnetic locks, electric strikes, door contacts, request-to-exit buttons, emergency break-glass units, power supplies and structured TCP/IP cabling for K1T802 installations. System-installation services include site surveys, EM or MIFARE credential selection, terminal mounting, card and PIN enrollment, lock and exit-button wiring, TCP/IP configuration where applicable, access-rule programming, testing, commissioning, troubleshooting and future system expansion. This enables customers to deploy a simple, reliable and cost-effective Hikvision card-access solution for offices, shops, residential buildings, warehouses and commercial facilities throughout the UAE.
