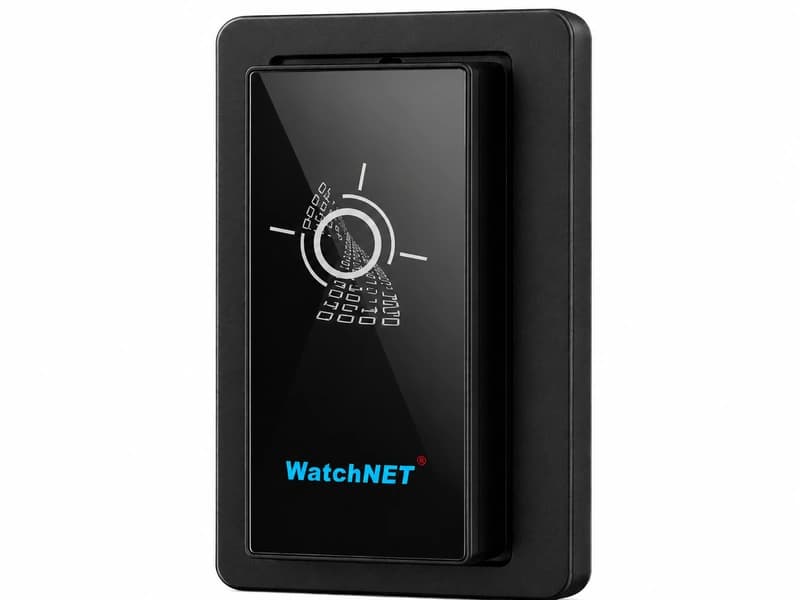

WatchNET WAR-EHO-MPX

The WatchNET WAR-EHO-MPX is a compact multi-technology proximity RFID reader designed for professional access control applications that need broad credential compatibility and simple integration. It operates at 125 kHz using ASK modulation and supports several proximity-card technologies, including certain HID®, AWID® and EM 125 kHz formats, along with WatchNET private card formats. The reader is compatible with standard Wiegand communication, including 26-bit and other configurable formats, allowing it to connect with a wide range of access-control panels. Its slim housing measures approximately 98 × 42 × 18 mm, making it suitable for mullion, wall and single- or double-gang-box installations. A blue LED, dual-colour status indication and integral buzzer provide clear visual and audible feedback during access transactions. The WAR-EHO-MPX is designed for reliable everyday operation in commercial and security-sensitive environments. It operates from approximately 7–12 VDC, with low power consumption, and is specified for temperatures from around -30°C to +65°C with operating humidity up to 95%. The reader provides dedicated control inputs for the LED and buzzer, allowing the connected access-control panel to provide customized user feedback. WatchNET also offers custom-encrypted proximity cards for projects requiring a more controlled credential environment. Because the reader supports multi-format proximity credentials and standard Wiegand interfaces, it is well suited for new installations as well as upgrades where existing cards or access-control controllers need to be retained. VEGA Digital IT Solutions LLC supplies and provides professional system integration of WatchNET WAR-EHO-MPX access-control readers across the UAE, supporting complete solutions from reader installation through controller and door-hardware integration. VEGA Digital can integrate the WAR-EHO-MPX with WatchNET WAC controllers, compatible third-party access-control panels, electromagnetic locks, electric strikes, door contacts, request-to-exit devices, emergency break-glass units, power supplies and centralized access-control software. Services can include site assessment, reader and controller selection, Wiegand configuration, credential enrollment, lock and sensor wiring, TCP/IP controller setup, access-level programming, testing, commissioning, troubleshooting and future expansion. This allows organizations to deploy a reliable, scalable and centrally managed access-control system for offices, warehouses, data centres, commercial buildings and other facilities throughout the UAE.
