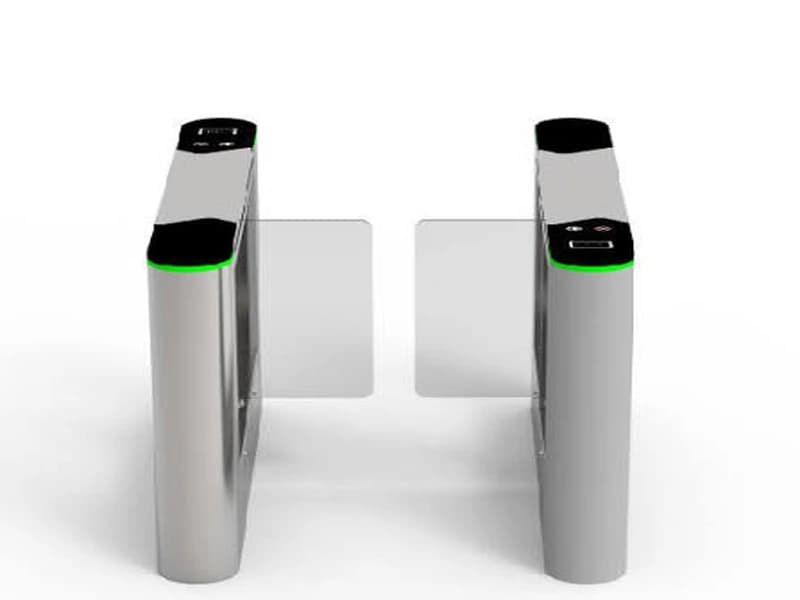

ZKTeco SBTL6000

The ZKTeco SBTL6000 Swing Barrier Turnstile is a modern single-lane pedestrian entrance-control system designed for corporate offices, commercial towers, hotels, banks, schools, government facilities and premium reception areas. Its main advantage is the modular reader-panel design, which allows compatible authentication readers to be changed or upgraded with a pull-out/plug-in approach rather than redesigning the complete gate. Depending on the reader installed, the SBTL6000 can support RFID cards, fingerprint verification, QR codes, palm verification and visible-light facial recognition, making it suitable for both conventional and touchless access-control applications. The current ZKTeco global specification lists a 635 mm lane width, six pairs of infrared sensors, LED indication, tempered-glass swing barriers, SUS304 stainless-steel cabinet and SUS304/acrylic top, along with emergency-mode support. The cabinet measures approximately 1400 × 180 × 1000 mm, operates from AC 100–120 V or 200–240 V, 50/60 Hz, and is specified for indoor or sheltered outdoor installation. The SBTL6000 is particularly useful where the access-control technology may evolve over the lifetime of the building. A site can begin with RFID cards and later move to facial recognition, palm verification, QR visitor credentials or fingerprint authentication without replacing the complete entrance barrier. Its six infrared sensor pairs monitor the pedestrian lane and help coordinate safe swing-barrier movement, while the LED indicators provide clear entry status to users. ZKTeco’s current global page specifies an operating range of approximately -10°C to +55°C and humidity of 20%–95% non-condensing;regional documentation has historically published somewhat wider environmental limits, so the final project specification should follow the datasheet supplied with the exact hardware revision. For projects requiring additional lanes, the related SBTL6200 is designed as a dual-lane/additional-lane companion to the SBTL6000 and retains the same modular-reader concept, with support for RFID, fingerprint, QR, palm and visible-light facial recognition. As an organized ZKTeco partner and system integrator across Dubai, VEGA Digital IT Solutions LLC can provide complete SBTL6000 deployment beginning with site survey, pedestrian-flow analysis and lane planning, followed by floor preparation, mechanical anchoring, mains and low-voltage cabling, reader installation and access-controller integration. VEGA Digital can connect the system with RFID/smart-card readers, ZKTeco facial-recognition terminals, fingerprint devices, QR visitor systems, employee attendance software, visitor-management platforms and centralized access-control systems, while multi-lane installations can combine SBTL6000 and SBTL6200 units as required. Final commissioning can include infrared-sensor alignment, swing-panel calibration, reader authorization, LED-status verification, emergency-mode testing, access-event validation and operator training, delivering a complete ZKTeco pedestrian entrance-control solution for offices, hotels, commercial buildings, schools and premium developments throughout Dubai and the wider UAE.
